Converting gooseneck jack to electric with atv winches

Discussion in 'General Tech' started by Curtis_H, Sep 21, 2020.

  1. Curtis_H

    Curtis_H Well-Known Member

    Joined:
    Sep 17, 2008
    Location:
    High Point NC
    A few have asked for more details so here you go. @NCJeeplover @paradisePWoffrd

    I have had this idea for awhile but I hadn’t got around to trying it until now. A friend of mine actually did his trailer the same way a few weeks ago using only one winch and attaching it to where the jack handle normally goes. I was not able to do this due to having a camper built on the front. Original thought was 1 winch in between the 2 jacks and use a chain and sprockets to attach winch to the common bar inbetween the jacks. I think this would have worked just fine but since mine also has a camper attached figured I would do the jacks separate to help with leveling on uneven terrain.

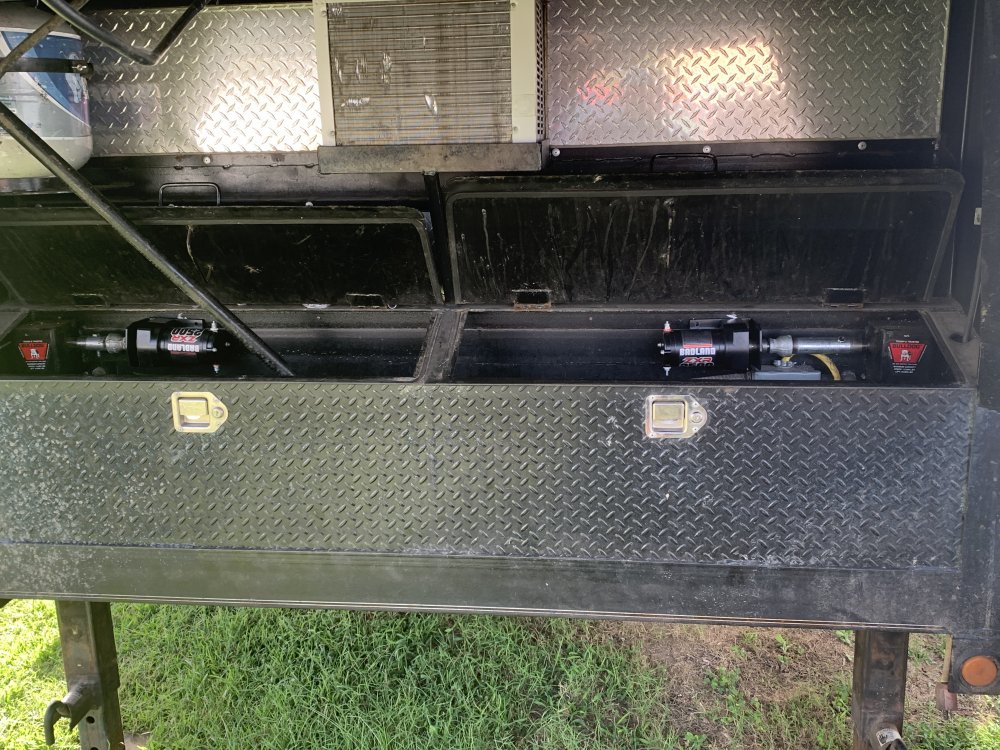

    I used 2 harbor freight 2500lbs atv winches. I removed the drum from the winch and used just the motors.

    Below is how I adapted from the splined fitting on the winch to the 1” shaft coming from the Jack. I welded all these pieces together after the pic was taken.

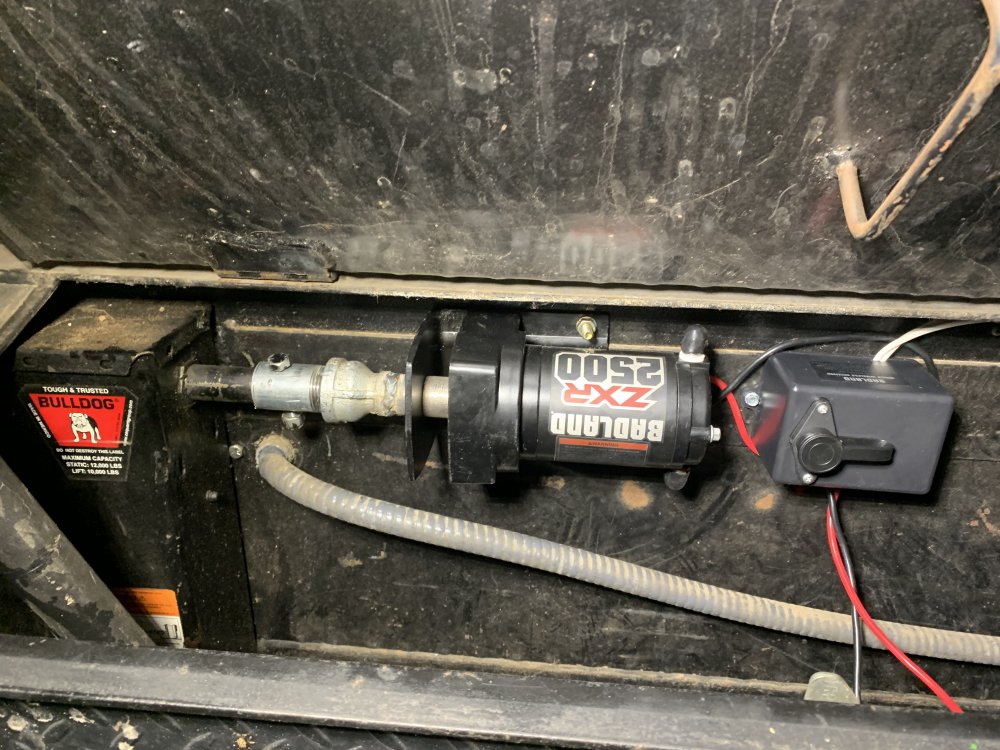

    I used the plate that used to hold the drum as a support For the shaft and mounting bracket for the winch. I moved the plate closer to the winch using the 2 existing mounting holes. I then simply drilled a hole in the shaft I made to hook it to the jack shaft.

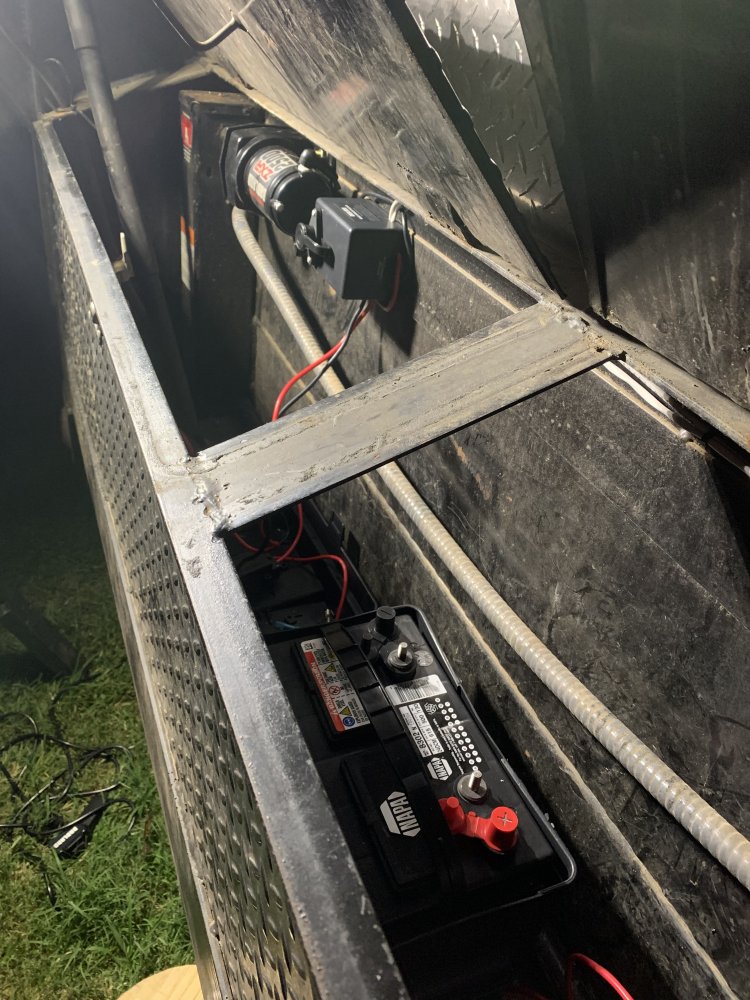

    I mounted a small marine deep cycle battery in between them. This is one part I’m not sure of on what size battery I should use so we will see what happens.

    It’s hard to see but that is a pic of one of the toggles. When the other comes in it will be mounted beside of it. The winches have to go opposite directions of each other to go up or down together so I will reverse the wires on one switch so when I press them both up the trailer goes up.

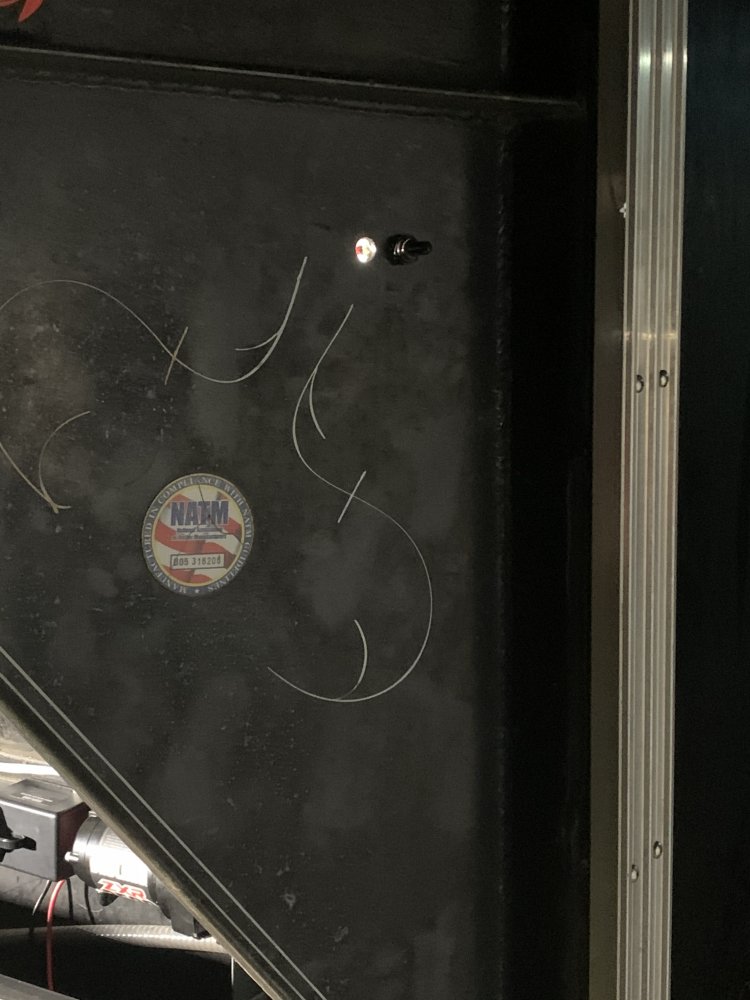

    I also added a kill switch in a different location out of normal sight so someone can not just walk by and hit the buttons to see what they do.

    Hopefully I will get it completely finished tomorrow. But one thing I have noticed already is that one winch runs a little slower than the other. Not by much but a little. I think it’s due to the shafts not being the same lengths but not positive. I made the shaft on the right winch a little longer to clear my electrical box but I think I’m going to end up moving the box and cutting the shaft down to the same size as the left winch.

    Last edited: Sep 21, 2020
  2. Curtis_H

    Curtis_H Well-Known Member

    Joined:
    Sep 17, 2008
    Location:
    High Point NC

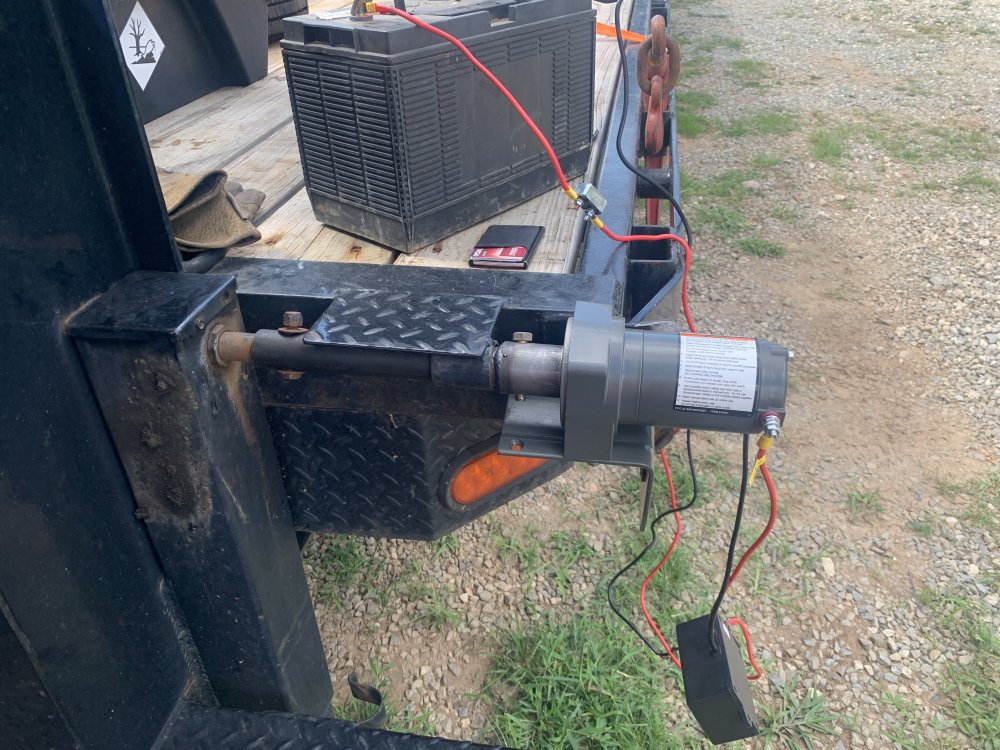

    Here is a pic of how my buddy did his with one winch.


  3. McCracken

    McCracken Logan Can't See This

    Joined:
    Jul 9, 2005
    Location:
    With your mom at a nice seafood dinner
    Shit like this amazes me. It's so simple yet no one thinks to use it in this application. Of course, that is until now. Great post. I think I'll do this to mine.

  4. YotaOnRocks

    YotaOnRocks Well-Known Member

    Joined:
    Jul 17, 2007
    Location:
    Winston-Salem
    Awesome idea and execution.

    I have often thought about welding a half inch extension to my jacks shaft and using my impact to run it up and down. My impact is always under the back seat, i just wasn't sure if it would work or beat up the gears in the jacks.

  5. 77GreenMachine

    77GreenMachine Phillip Talton

    Joined:
    Mar 30, 2010
    Location:
    Trinity, NC
    I would be concerned the impact would eventually break the thru-bolt with the hammering motion. Probably work for a while but might break something over time

  6. rcalexander105

    rcalexander105 Rod Alexander

    Joined:
    Nov 3, 2017
    Location:
    High Point
    This

    Center pins of TC jacks don't like impacts at all @CasterTroy :lol:

    CasterTroy likes this.
  7. Bebop

    Bebop Well-Known Member

    Joined:
    Nov 16, 2019
    Location:
    TN
    Might work with a big drill, as long as it doesn't have the impact motion, I think you'll be OK.

    rcalexander105 likes this.
  8. Curtis_H

    Curtis_H Well-Known Member

    Joined:
    Sep 17, 2008
    Location:
    High Point NC
    I use to use a drill to raise and lower My Slide in camper and it worked well in low gear. I think it would take one heck of a drill to raise my gooseneck though. I have heard of people using a harbor freight pipe threader but never actually seen it.

  9. jeepinmatt

    jeepinmatt Still Fat

    Joined:
    Mar 24, 2005
    Location:
    Stanley, NC
    I've bored out H2 wheel centers with a 1/2" chuck harbor freight drill. But it did break the screw in handle off the metal housing. Don't underestimate the power of orange chinese plastic!

    Curtis_H and Bebop like this.
  10. Bebop

    Bebop Well-Known Member

    Joined:
    Nov 16, 2019
    Location:
    TN
    Quoted for the truth lol

  11. Curtis_H

    Curtis_H Well-Known Member

    Joined:
    Sep 17, 2008
    Location:
    High Point NC
    Well got the other toggle in and tested. From fully seated to clearing the bed it takes about 2 full mins. Which I have a flat bed and the ball sets down inside the bed. On a normal bed you could cut this time down 30 seconds to a minute I bet. So not super fast and it’s pretty noisy but faster and easier than hand cranking. And I wasn’t sweating when I got done. If someone can tell me how to up load a video I’ll post it.

    Last edited: Sep 22, 2020
    rcalexander105 likes this.
  12. 77GreenMachine

    77GreenMachine Phillip Talton

    Joined:
    Mar 30, 2010
    Location:
    Trinity, NC
    You have to upload the video to YouTube, then post the link here.

  13. WARRIORWELDING

    WARRIORWELDING Owner opperator Of WarriorWelding LLC.

    Joined:
    Jan 6, 2008
    Location:
    Chillin, Hwy 64 Mocksville NC
    Never had one of those apart. Is the reduction gearing in the housing next to the motor? Many others are a through shaft to the other side of the drum.

  14. CarolinaHD

    CarolinaHD Well-Known Member?

    Joined:
    Dec 2, 2008
    Location:
    Mt. Pleasant NC
    The only issue is if the winch fails you have gotta take it all apart and swap the handle back on. I would mount the winch on the passenger side jack then it would be easier to swap the handle back on the driver side. Or maybe the handle can swap to both sides?
    Either way I'm gonna do this soon. :rockon:


  15. WARRIORWELDING

    WARRIORWELDING Owner opperator Of WarriorWelding LLC.

    Joined:
    Jan 6, 2008
    Location:
    Chillin, Hwy 64 Mocksville NC
    Reply to self......yes planetary style reduction in housing. Complete with shit seals and brake housed in drum.

  16. Curtis_H

    Curtis_H Well-Known Member

    Joined:
    Sep 17, 2008
    Location:
    High Point NC
    I thought about this. If I would of used the chain and sprocket idea you would only needed to free spool the winch and then you could manually Crank it. But it’s only 3 bolts per winch and I left the common bar and jack handle in the tool box. So realistically I could have it swapped back to manual in under 15 mins. So somewhat a pain but not that big of a deal.

    CarolinaHD likes this.
  17. paradisePWoffrd

    paradisePWoffrd Recovering Project Junkie

    Joined:
    Nov 5, 2005
    Location:
    Newton, NC
    I am thinking this might be what I do.

    Curtis, thanks for putting this together. I would suggest adding a solar panel charger for that battery.

    Speaking of, wonder if I could use an M18 battery to power this setup? Would be really nice to mount a dock on the trailer that runs off a small battery to power this and the LED deck lights.

  18. Curtis_H

    Curtis_H Well-Known Member

    Joined:
    Sep 17, 2008
    Location:
    High Point NC

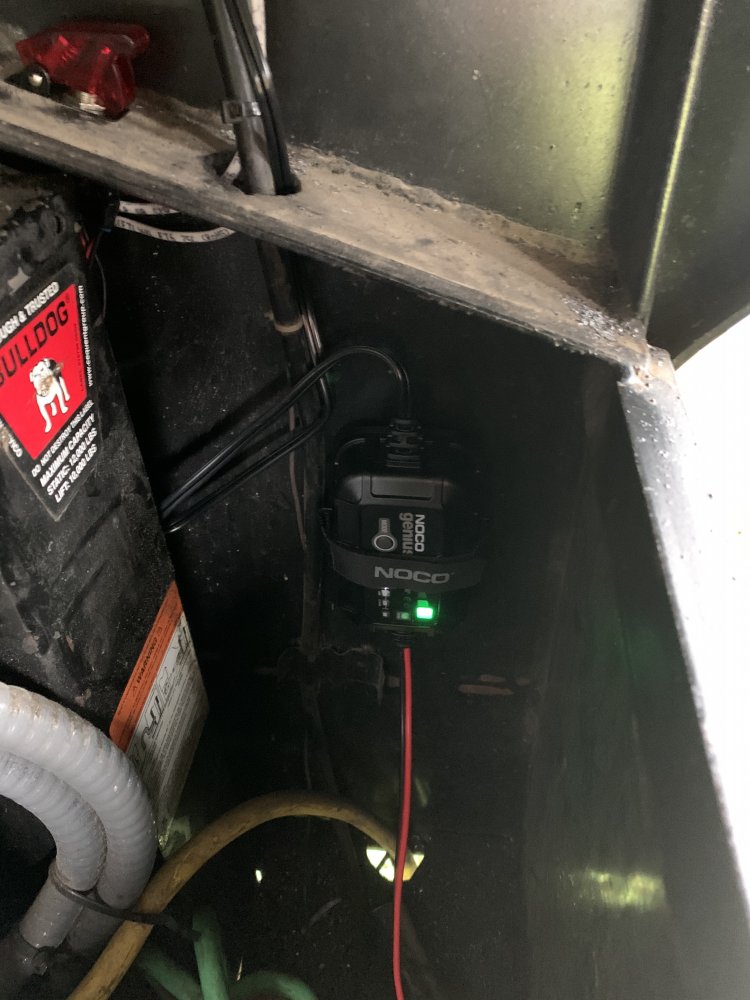

    I ended up installing a gensuis5 5 amp charger/battery tender that can be left hooked to battery at all times, So anytime camper is plugged in it charges back up. 18A3861E-9DBD-41FF-A31F-E52869AB218F.jpeg
