97 ZJ on Superduty axles, 39.5, 4 link, normal fuller stuff

Discussion in 'Build Threads' started by marty79, Feb 27, 2019.

  1. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    figured time to start the build thread now that I got the axles and tires and some of other things, still rounding up parts though.
    base start: 97 Grand Cherokee ZJ 4.0, Auto, 242, nothin fancy......yet
    plan as of now: 03 Superduty axles, 39.5s, 4 linked rear, radius arm front, 10K winch, and hopefully something closer to a "real" cage when done lol.
    Haven't done much to the Jeep itself except build the winch bumper and mounted the winch (same 10K winch I had on the other buggy)
    So far got the rear axle mostly done. Like usual, all done from 1/4" scrap plates I've always gathered but works well. Yes those coil buckets are the factory top leaf spring plates...Coil springs sit inside them perfect though so it was free and easy to make. Just gotta drill holes in all the link tabs and those will complete the rear tomorrow. Here's some pics of my rear axle truss work, enjoy!!! lol
    (little cool story, bought the rear 10.5 and 2 D50s for $300. Well got to working on one and found out real quick that turned out to be a complete D60 and partial D50 so WOOHOO, that was a really nice blessing to find out)

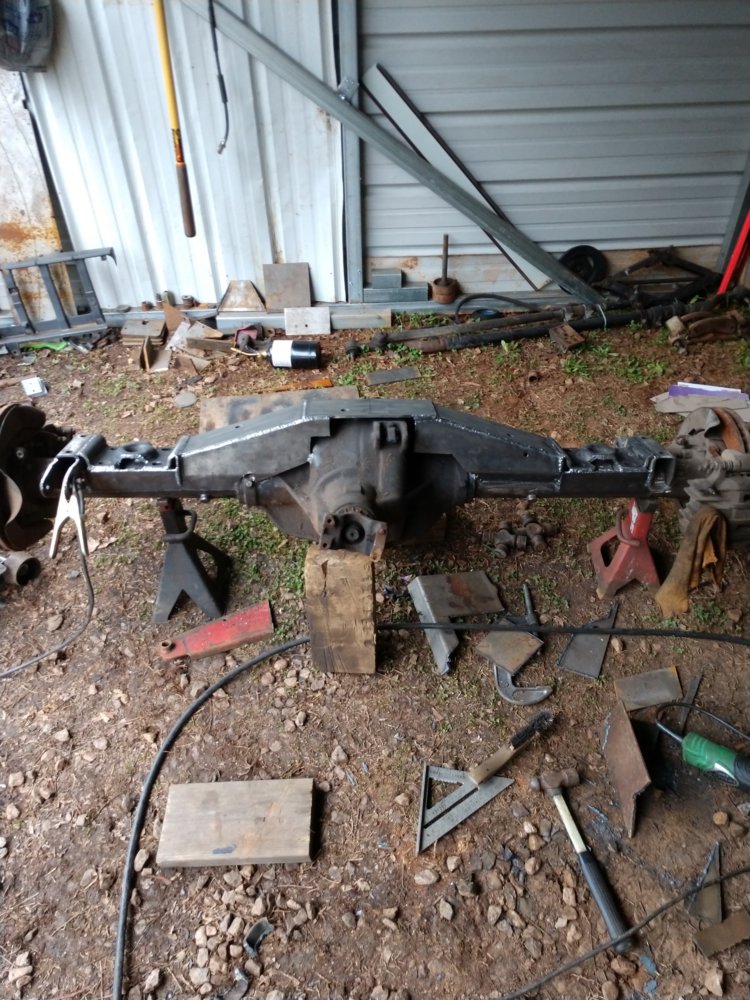

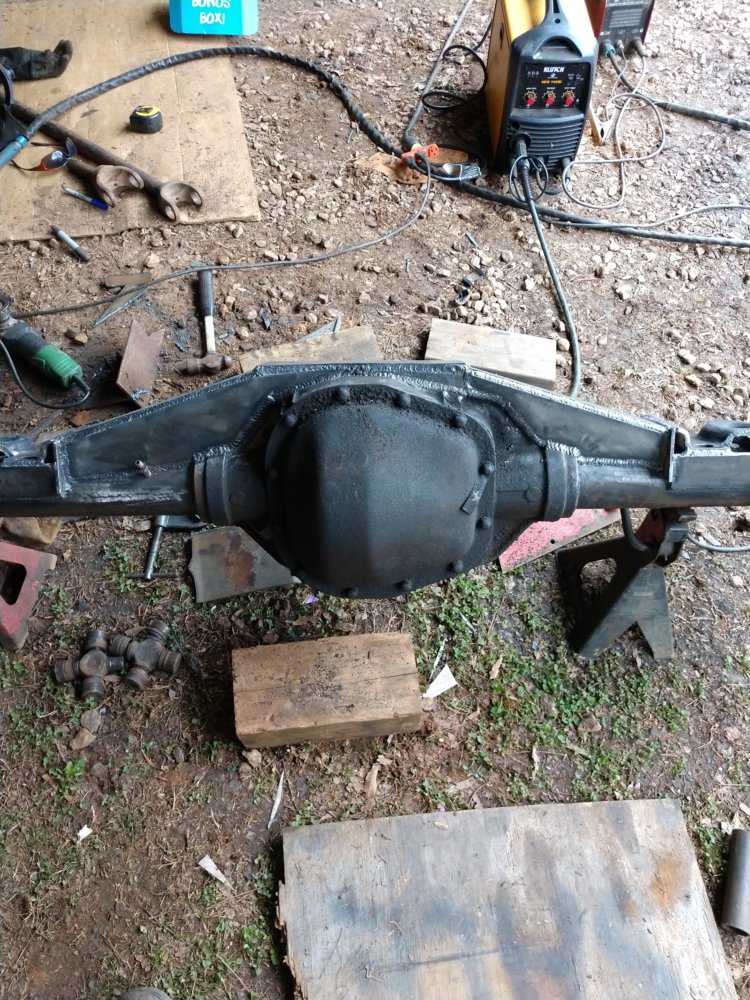

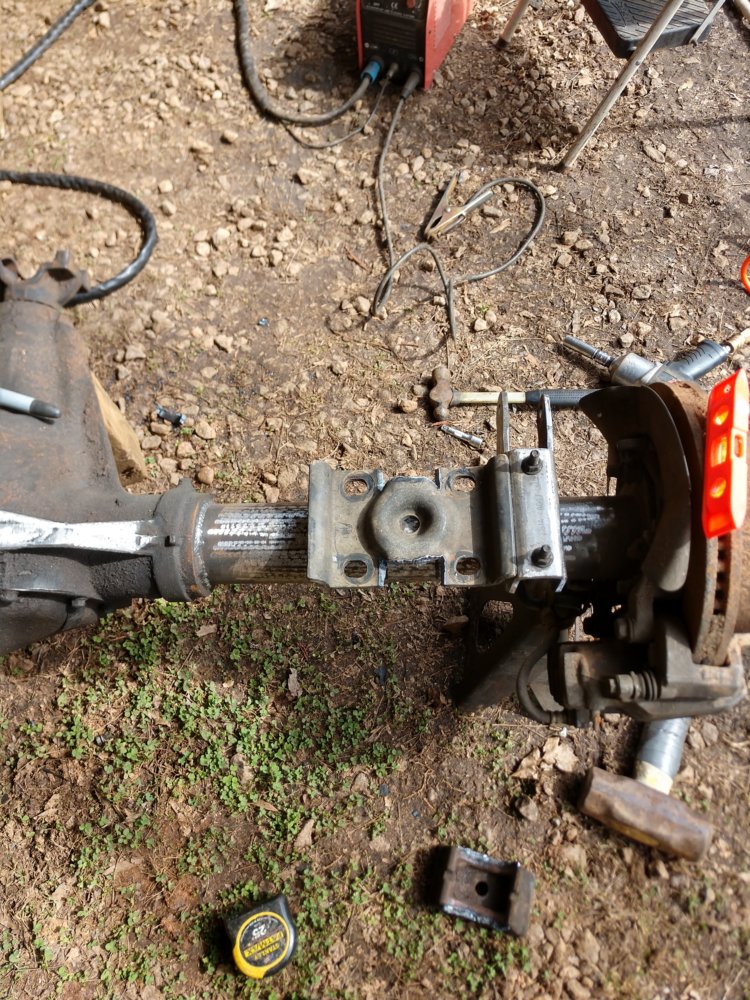

    rear axle coil bucket mock up.jpg rear axle coil bucket mock up 2.jpg rear axle truss center.jpg rear axle complete view.jpg rear axle complete long view.jpg rear axle pinion view.jpg

  2. Creekin

    Creekin Well-Known Member

    Joined:
    Jun 26, 2018
    Location:
    Hickory
    I like the picture of the German Shepherd protecting the axle.
    Don't think anyone would mess with that axle with him keeping an eye on it.
    Are those axle shafts by his side his chew toys?

    jeepinmatt and marty79 like this.
  3. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    lol yeah she loves to hang out in the shop all day. She's as sweet as can be once she knows who it is, but couple times I've been welding or something and someone has sneaked up on me while working...whew she makes me jump with her bark lol but she's composed though, just does her job to be very aware.

    Mac5005 likes this.
  4. Scooter402

    Scooter402 Rest in pieces

    Joined:
    Feb 4, 2009
    Location:
    Up yonner in Pennsyltucky
    Sweet. I dig the truss, and the repurposed scraps. That's how I like to build some stuff too. Only comment I might suggest is cutting some drain holes where your plates meet the axle tube. Might just be the angle of the pics, but it looks like mud and debris can fall into the holes around the spring seat, and sit in the truss along the weld seam at the axle tube.

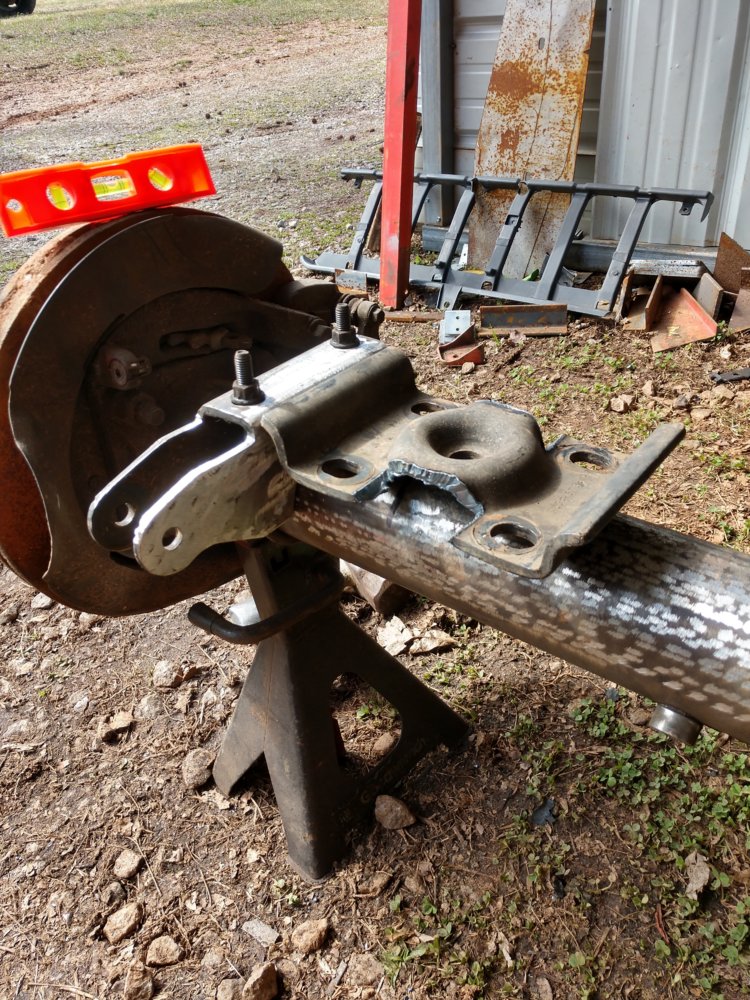

    Not sure why, but I found humor in this picture: (specifically the level placement)

    [​IMG]

    marty79 likes this.
  5. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    Oh wow I didn't realize the level was "level" lol. Note taken on spring mounts for draining

  6. Chris_Keziah

    Chris_Keziah Joe Dirt

    Joined:
    Dec 1, 2010
    Location:
    Winston-Salem
    Why are the shock mounts opposing rather than both on the back or front?

  7. NickMaul

    NickMaul Well-Known Member

    Joined:
    Jul 4, 2009
    Location:
    Virginia Beach

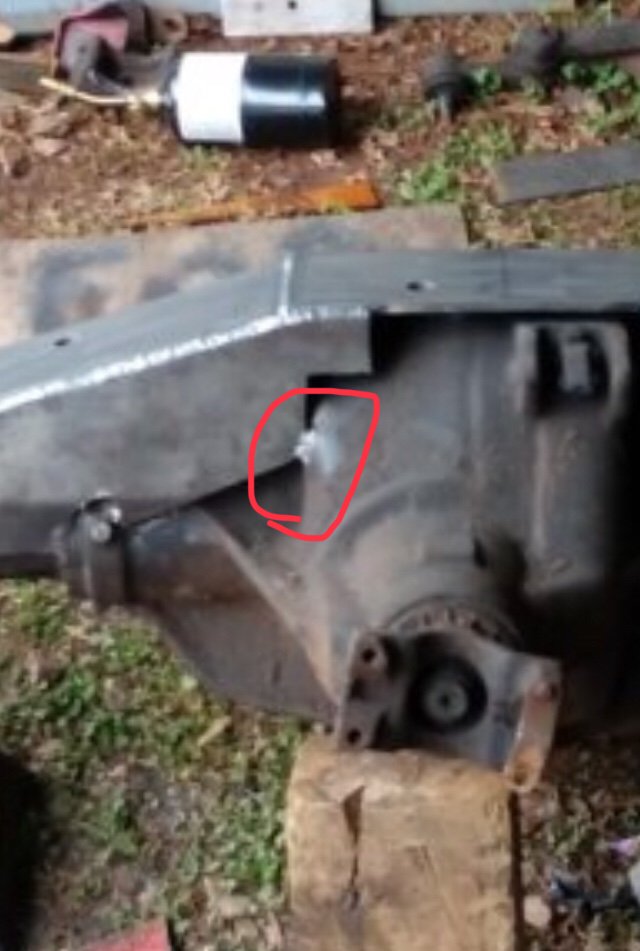

    I had incredible doubt until I saw this weld. Now it definitely won’t rip off :D

    [​IMG]


    Sent from my iPhone using Tapatalk

    BB98xj, rockcity, Loganwayne and 5 others like this.
  8. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    Lol yeah I thought the same thing after said to myself "stupid like that's gonna help"

    jeepinmatt and NickMaul like this.
  9. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    Calipers in the way, plus I'm more or less use them just to kind of give me a real good welding surface for the coil buckets I might not actually end up using those specific shock mounts once it's up under the jeep

  10. BigClay

    BigClay Well-Known Member

    Joined:
    Sep 24, 2008
    Location:
    Winston-Salem
    John, first of all let me say I have a soft spot for ZJs, and after wheeling two of them, I love them. With that said, they have some major limits and weak spots. Very rarely do you see a true ZJ on one tons with 40" tires. The major reason for this is the unibody, it is thin and flexes like tin foil. The second is the amazingly small wheel wells that are basically one with the unibody. Have you thought about unibody plating and an interior cage? My recommendation would be to concentrate on these two things before throwing the axles under there. If you do axles first, then the first time you go to flex the suspension my money is on you not being able to open the doors with a stuffed front tire.

    marty79 likes this.
  11. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    Bruh you talking to the XJ fanatic here. I know all about these unibodies weaknesses and such. Body work will come later. I chose to build axles first cause I'm not ready for full teardown of zj yet...gotta gather plating and links and such for all that. Axles for me are first priority to be ready to go under, then get the links parts and made, driveshaft materials, then I tear down the Jeep once everything is ready to go under. That's just how I do it.

    BigClay likes this.
  12. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    it's going to be a surprise for you and me and everyone else of what kind of cage this ends up with haha

    BigClay likes this.
  13. BigClay

    BigClay Well-Known Member

    Joined:
    Sep 24, 2008
    Location:
    Winston-Salem
    I know you are the XJ fanatic for sure, I swear the ZJ unibody is even thinner than an XJ...

    88bronzetrooper and marty79 like this.
  14. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    Actually the zjis little stronger overall, more added bracing but yeah they're definitely an art to weld to lol ive gotten good at it but most people always say how they constantly burn right through lol

    BigClay likes this.
  15. XJsavage

    XJsavage Warlock of Zante plantation

    Joined:
    Aug 15, 2009
    Location:
    Sc
    I like it already! I found out from doing my Sterling truss that the centersection is very weldable as is. Overlap a few cut-to-fit gussets to tie the truss into the axle. There's no reason not to. Looking very good though! You definitely started in the right place with the axles.

    drkelly and marty79 like this.
  16. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    got a little done on the front axle today...surprised cutting the drivers side perch off wasn't that bad as expected. got more work to do but it's progress...

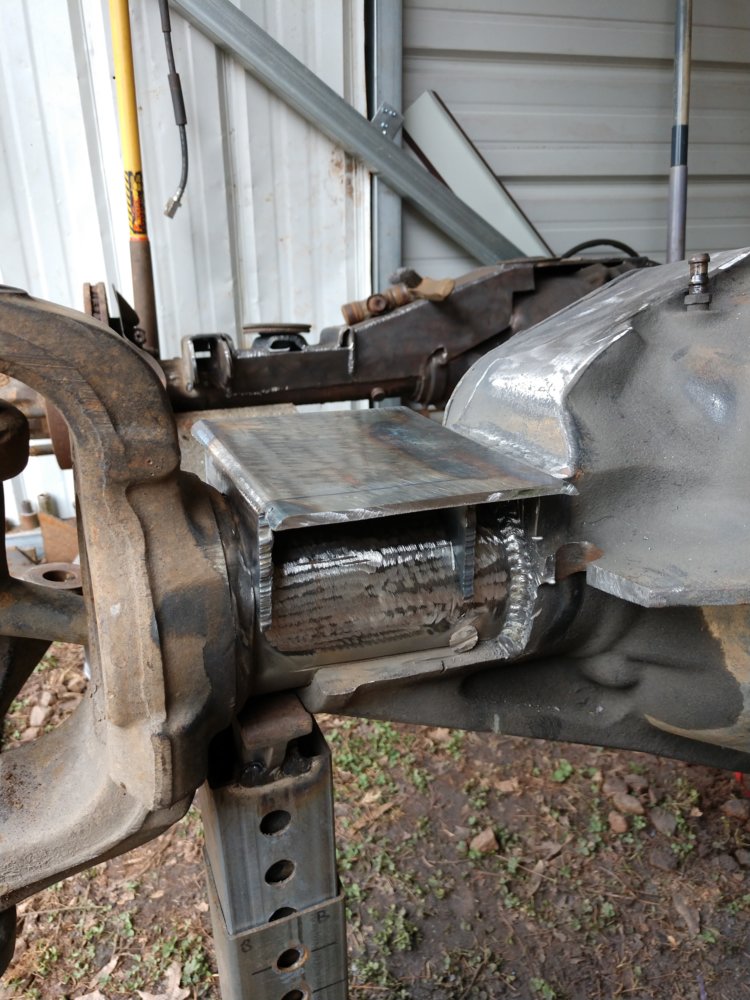

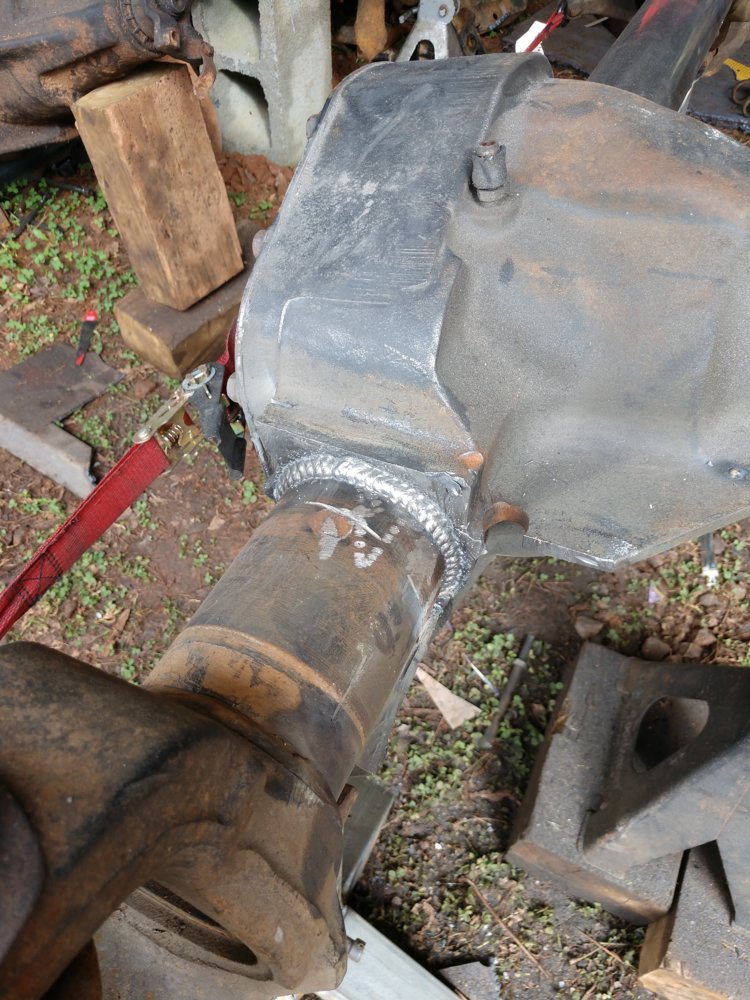

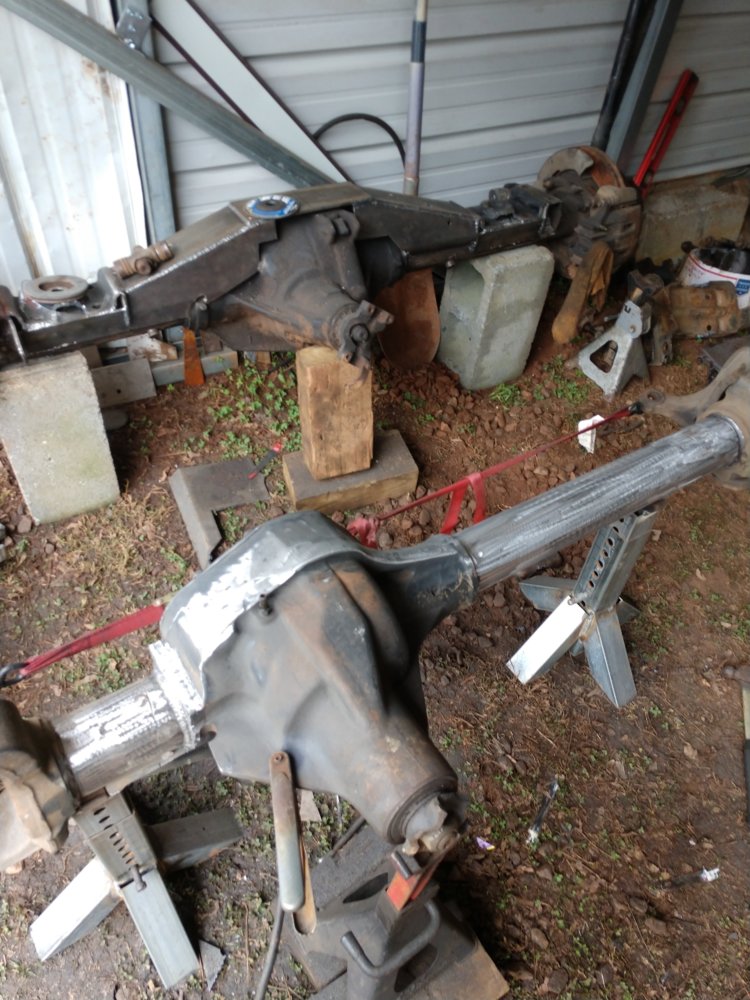

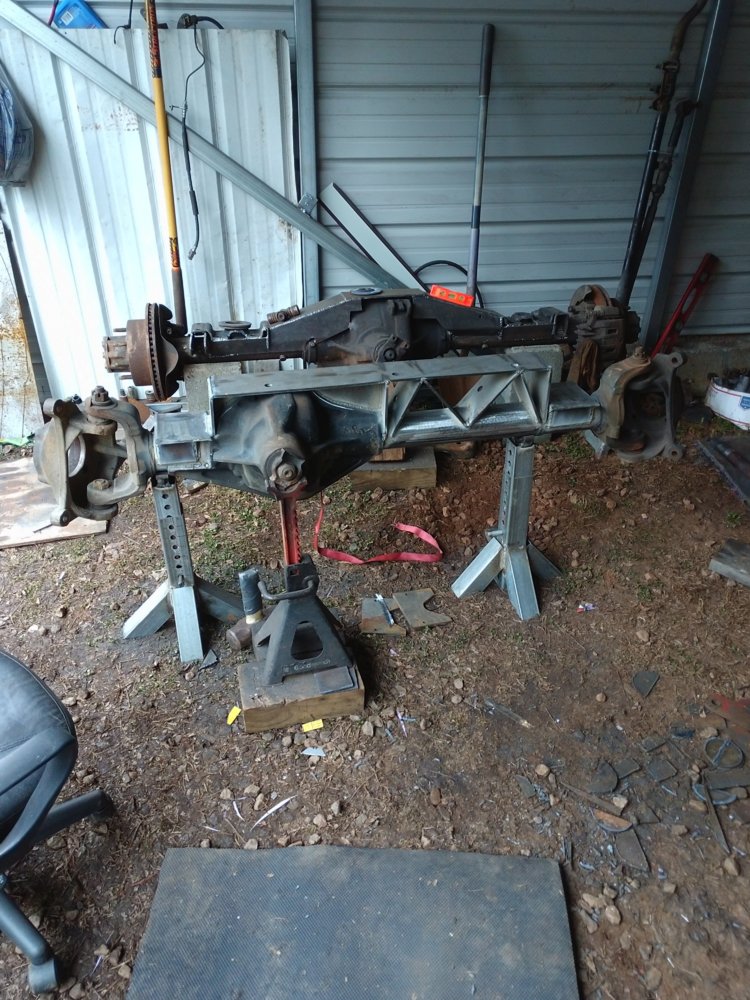

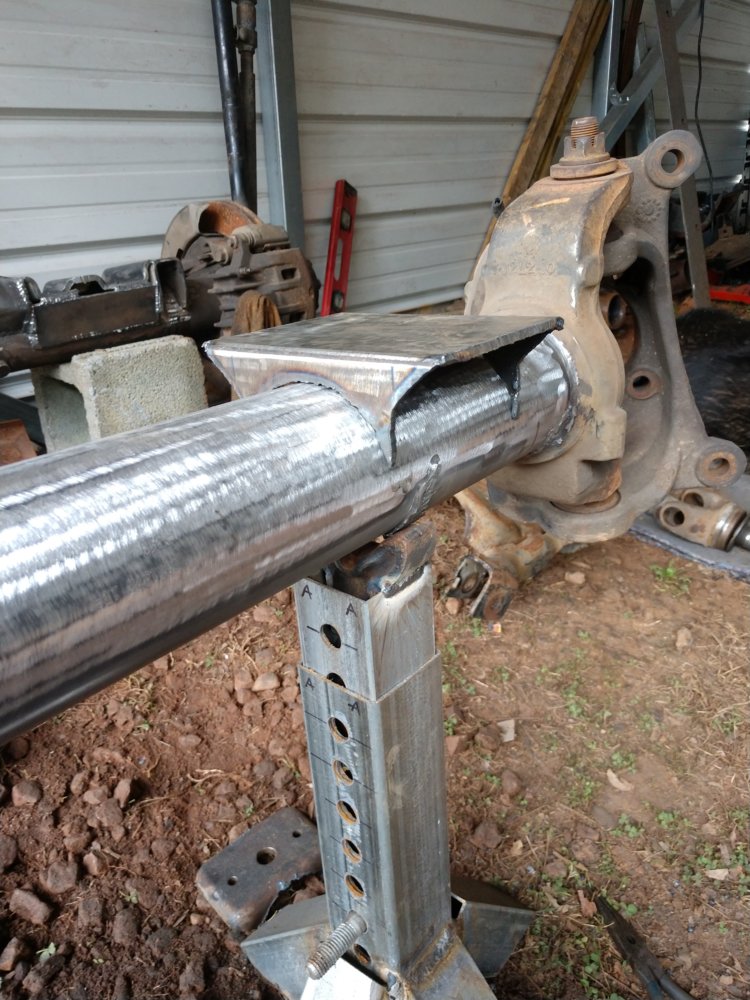

    front 60 first cut.jpg front 60 bare perches cut.jpg front 60 pass perch.jpg front 60 driver perch.jpg front 60 truss pinion view.jpg
    ran out of materials to fully enclose the truss so I just did some "triangulation" lol..hey I'm learning to get my triangles in there haha. I'm undecided if I want to box in the rest of the truss or leave it as is. It's plenty beefy, probably way overkill

    drkelly likes this.
  17. Loganwayne

    Loganwayne #BTL

    Joined:
    Feb 15, 2013
    Location:
    Clyde, North Carolina
    good lord that thing is going to sit a mile high with all that above the axle tube if you want any up travel.

    marty79 and Jody Treadway like this.
  18. Chris_Keziah

    Chris_Keziah Joe Dirt

    Joined:
    Dec 1, 2010
    Location:
    Winston-Salem
    That truss has a large enough platform to host a Lynyrd Skynrd Concert.

    BB98xj, shawn, 77GreenMachine and 9 others like this.
  19. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    Well it's no higher than factory xj mounts sit and it's level with pumpkin. It'll be alright

  20. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    Got little more done

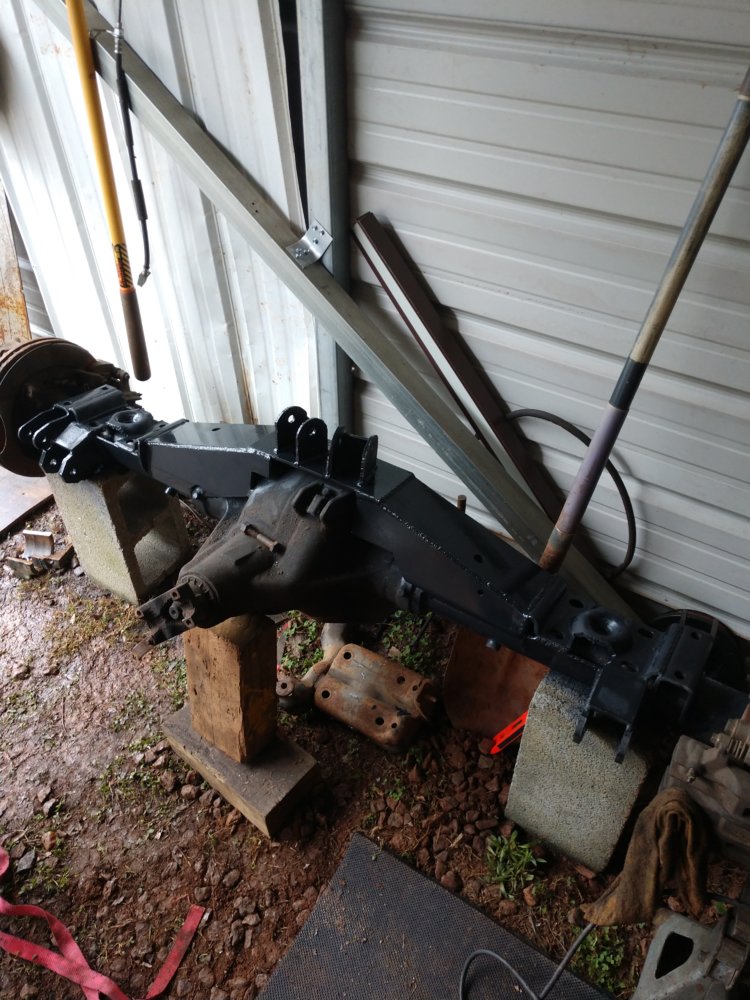

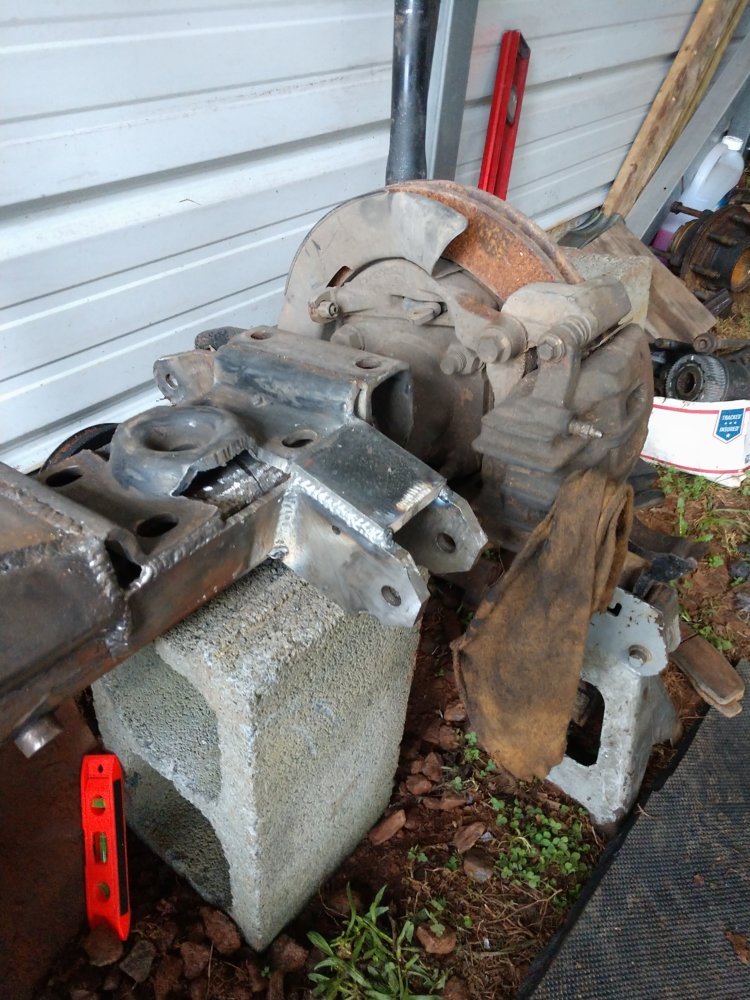

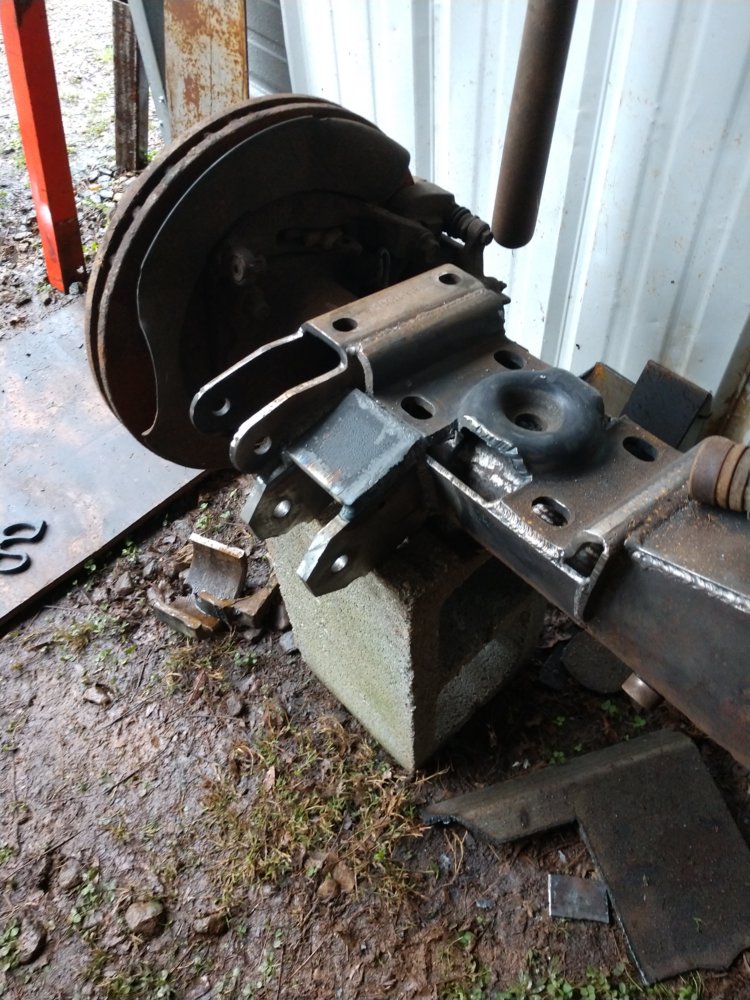

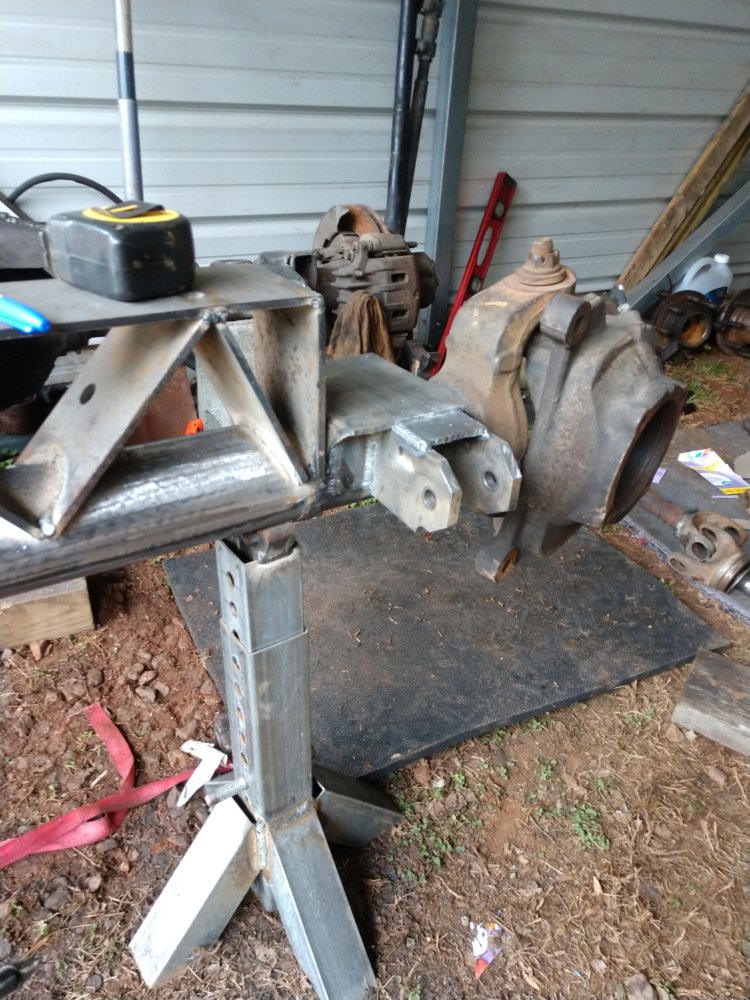

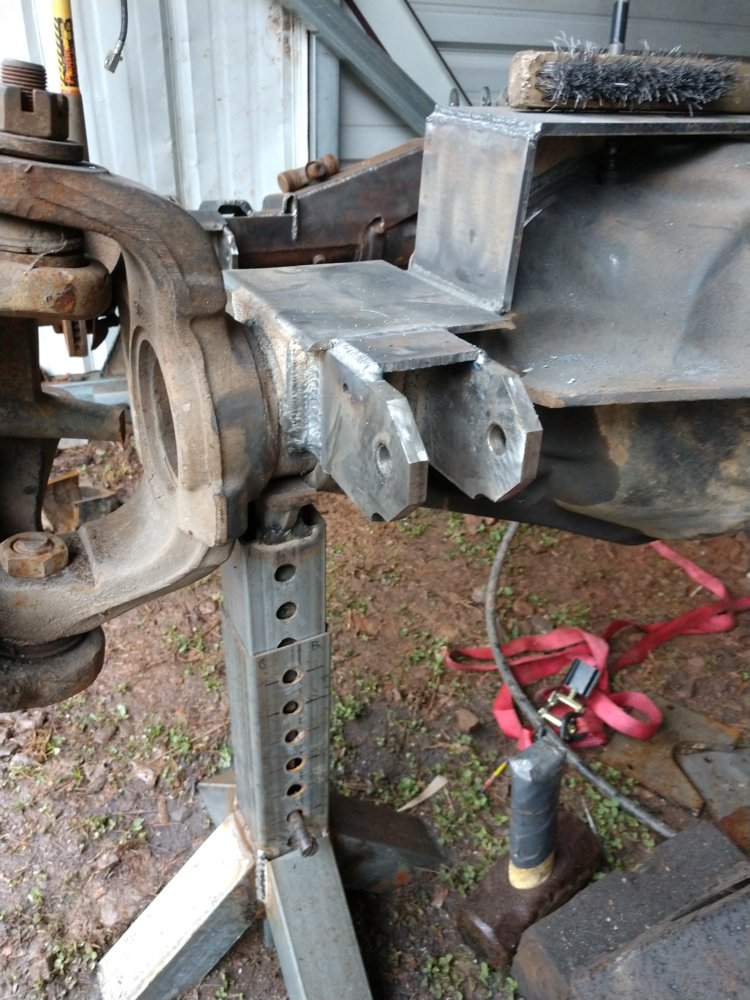

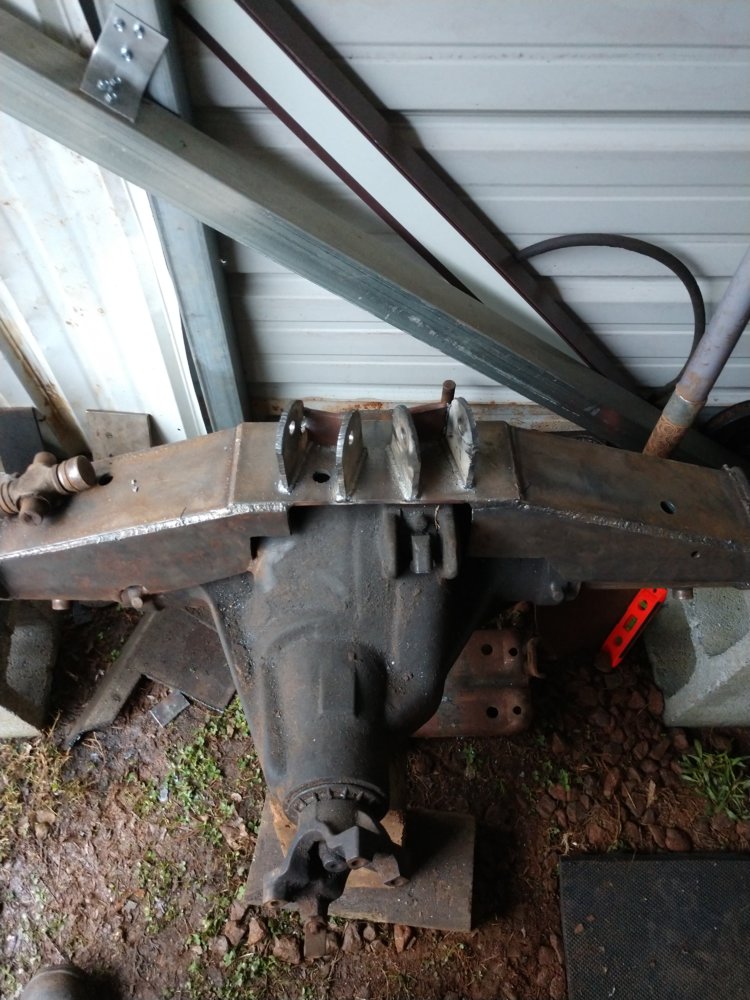

    IMG_20190301_132832107.jpg IMG_20190301_120537361.jpg IMG_20190301_120530017.jpg IMG_20190301_120523442.jpg IMG_20190301_120511670.jpg IMG_20190301_120449169.jpg

    drkelly likes this.
  21. jankoid

    jankoid Rock Humper

    Joined:
    Sep 18, 2011
    Location:
    Albemarle

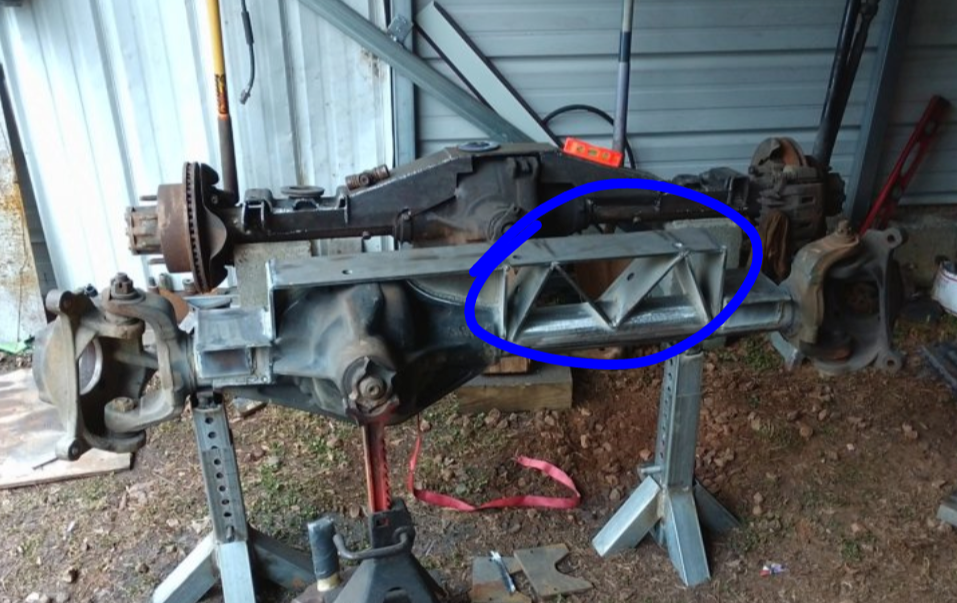

    This entire section of the truss is pointless. Any strength it provides is unnecessary, and it will only cause clearance issues with the engine.



    Also, those straight vertical sides of the truss next to the coil pads are going to interfere with the coil springs when the suspension flexes. That's why almost every truss you see has angled sides. Not just for appearances.

    marty79 and C.Berry like this.
  22. C.Berry

    C.Berry Bad News

    Joined:
    Aug 10, 2008
    Location:
    Blacksburg, Va
    Cmon fuller you had a good start on rear and looks like you said fuck it on the front truss!??? Please cut that shit off an redo that mtn heep of triangles! You obviously can make that way better and it function properly, and I’m not Being a dick I swear, but legit I looks like you handed the welder and saw over to yourself 10 years ago and used flat stock instead of trampoline tube...

    marty79 likes this.
  23. C.Berry

    C.Berry Bad News

    Joined:
    Aug 10, 2008
    Location:
    Blacksburg, Va
    He could cut those triangles in half and get by it that’s the design he wants... I vote fix that square mess!! Lol

    marty79 likes this.
  24. 1stgenxxx

    1stgenxxx Well-Known Member

    Joined:
    Dec 19, 2005
    Location:
    Hudson
    party on wayne

  25. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    I know I know.. Im not too fond of it either. I'll admit kinda lost my motivation for looks on front...been dealing with some crap yesterday. It'll get fixed most likely
