97 ZJ on Superduty axles, 39.5, 4 link, normal fuller stuff

Discussion in 'Build Threads' started by marty79, Feb 27, 2019.

  1. skyhighZJ

    skyhighZJ Thanks for your taxes

    Joined:
    May 31, 2012
    Location:
    Aberdeen, NC.
    4FA2E374-B91A-4BD6-9993-879185767972.jpeg 5B31F23A-2C08-442E-955B-98663FC70D3E.jpeg E577A52E-D6E2-4D97-B92F-76B17A1CADAE.jpeg C5A52482-7D3A-40A1-AAEF-39669F2D636F.jpeg 5C92658E-990B-416E-8873-4C37EBB581A5.jpeg

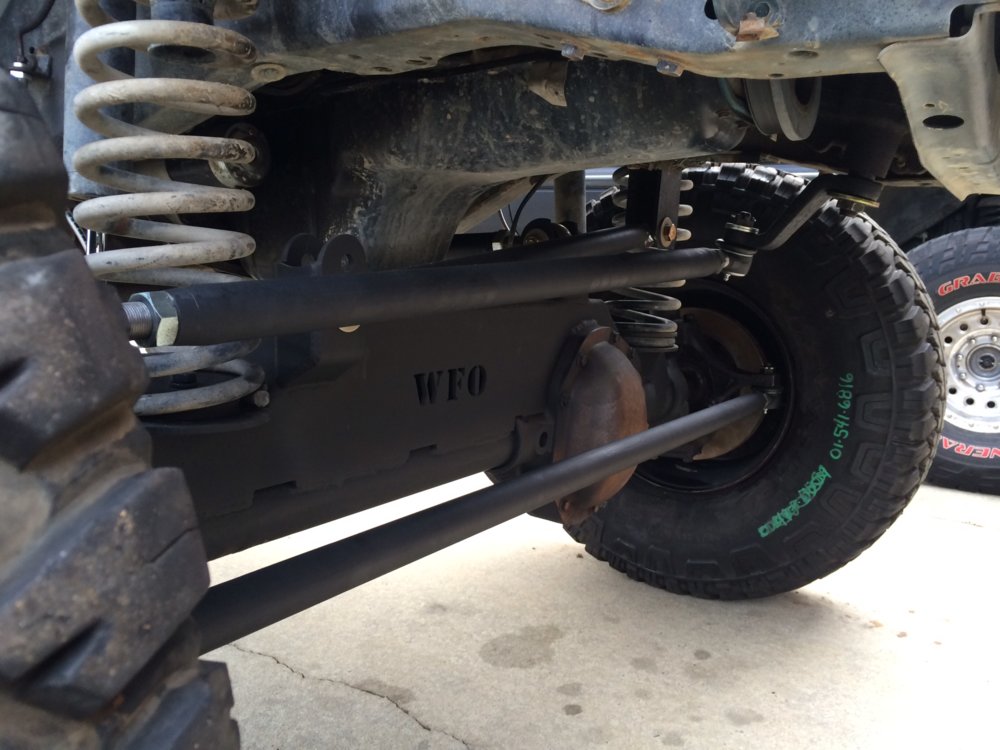

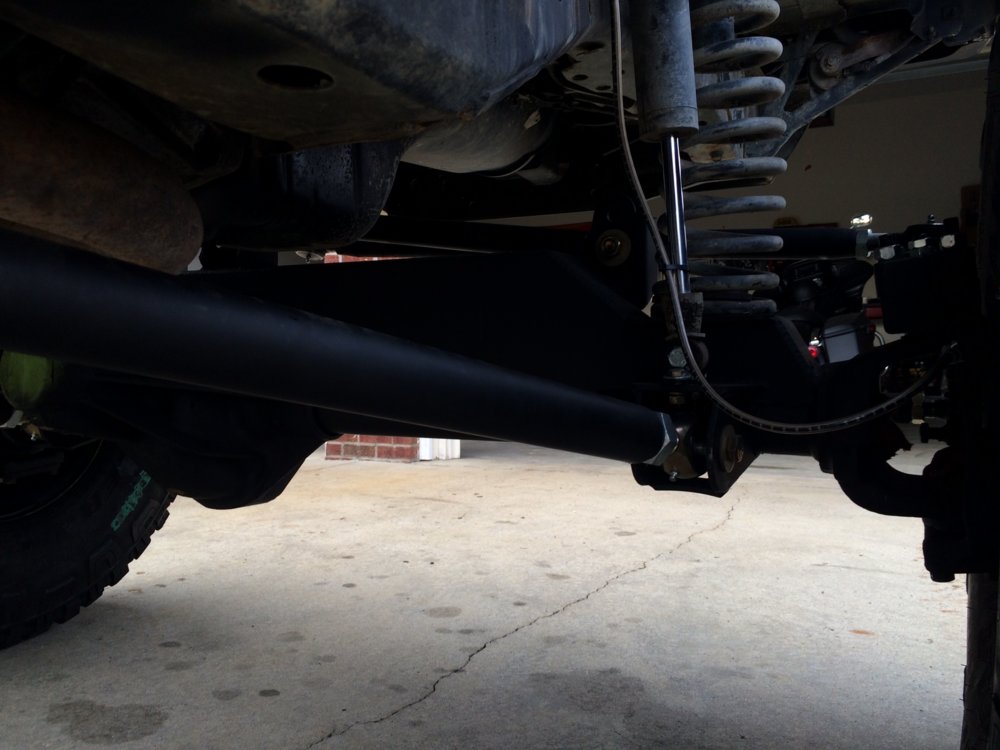

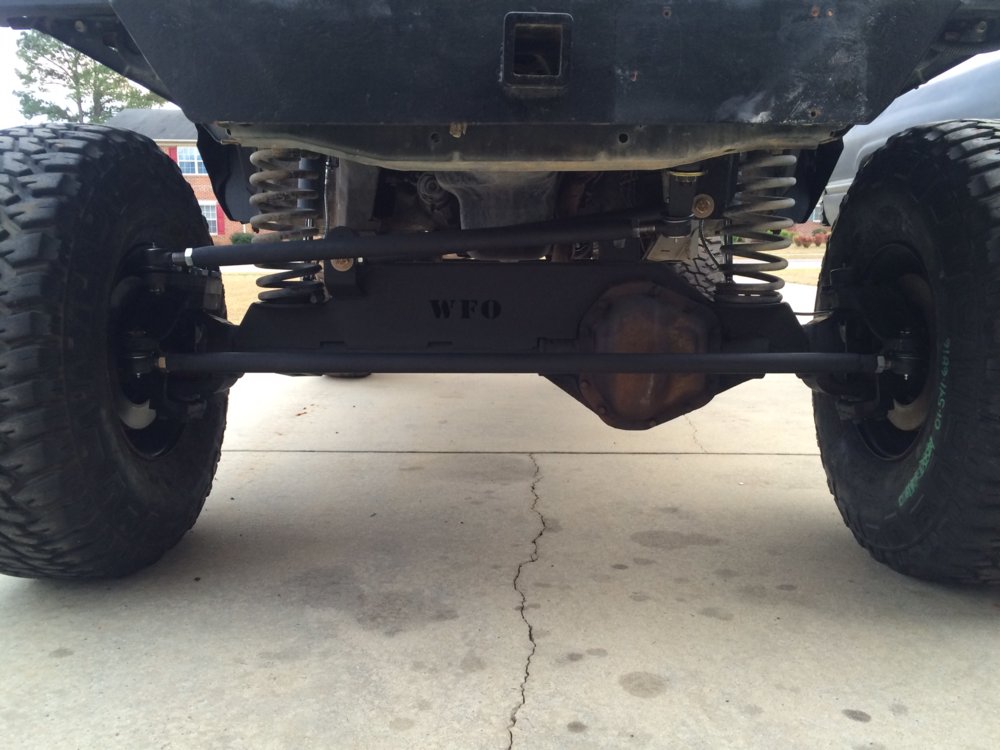

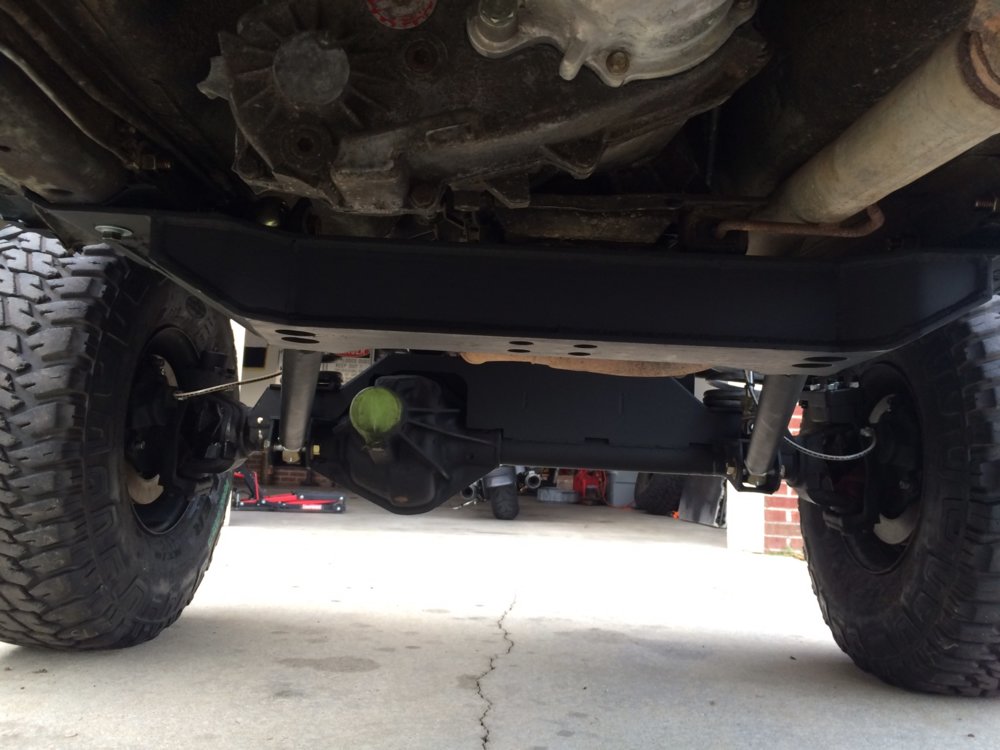

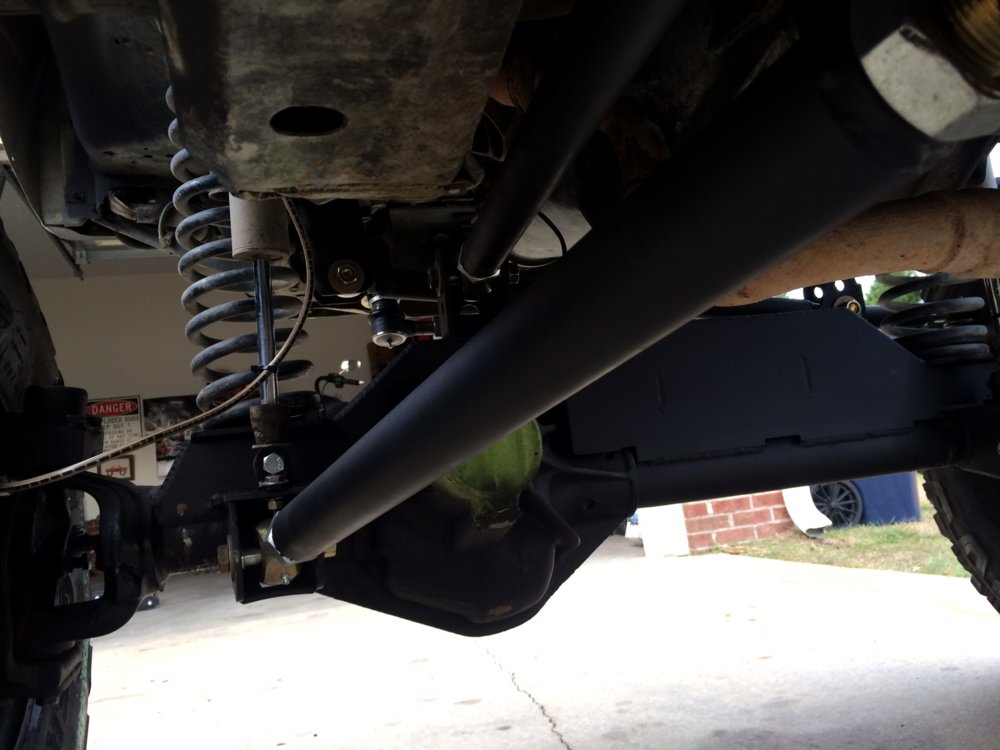

    This was when I had just got things setup. I was a long way from finished but may give you an idea.

    Scooter402, doc, drkelly and 4 others like this.
  2. skyhighZJ

    skyhighZJ Thanks for your taxes

    Joined:
    May 31, 2012
    Location:
    Aberdeen, NC.
    It drove down the road at 75mph no issues and no I’ll steering effects. I personally think it flexed alright.

    Jeff B, doc, Creekin and 2 others like this.
  3. Jody Treadway

    Jody Treadway Croc wearing fool Moderator

    Joined:
    Mar 20, 2005
    Location:
    Hendersonville, NC
    Leave 'em and just weld 4 new tabs on

  4. BigClay

    BigClay Well-Known Member

    Joined:
    Sep 24, 2008
    Location:
    Winston-Salem

    New sig quote FTW!!!!

  5. shawn

    shawn running dog lackey of the oppressor class Administrator

    Joined:
    Mar 13, 2005
    Location:
    Raleigh, NC

    Scooter402 likes this.
  6. Stuntman Autoworks

    Stuntman Autoworks Instigator of things

    Joined:
    May 6, 2010
    Location:
    Sanford NC 27330
    A non triangulated 4 link front with a trackbar (think stock zj,xj suspension) Can use a regular steering box with drag link because the axle and steering will move in the same arc as the suspension droops or compresses. With a stock steering system and a triangulated suspension now the steering still wants to move in that arc but the axle wants to move up and down centered under the rig so you will end up with massive bumpsteer.

    That's why you HAVE to go full hydro with a triangulated front suspension.

    drkelly, marty79, a_kelley and 2 others like this.
  7. Mac5005

    Mac5005 Welding Instructor

    Joined:
    Oct 19, 2005
    Location:
    Rocky Mount
    As far as pvc link, you cut several relief cuts in the ends of the pvc, the size pvc that fits your weld in tube adapters, and tighten hose clamps around them to hold them in.

    2” drop subframe, cover it with a plastic skid so it’s quiet when it his stuff and done.

    Uhmw is self lubricating when sliding over rocks.

    You only need 40 degrees total triangulation. That could be each link at 10 degrees.

    Or conventional 4 link with a track bar.

    Track bars are easy.

    Make it same length and angle as drag link....

    Are you putting any of the links into software to calculate the geometry.

    Spending the time to custom link it, it’s worthwhile to crunch the numbers. Otherwise just use a bolt on kit...

  8. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    that makes sense, thanks for clarifying that

  9. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    thanks for all the info guys, stuff to def keep in mind when I get thee jeep tore down. Will keep updated once I get to working on jeep and see what happens with the front. Thank you

    Van-go likes this.
  10. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Any updates??

  11. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC

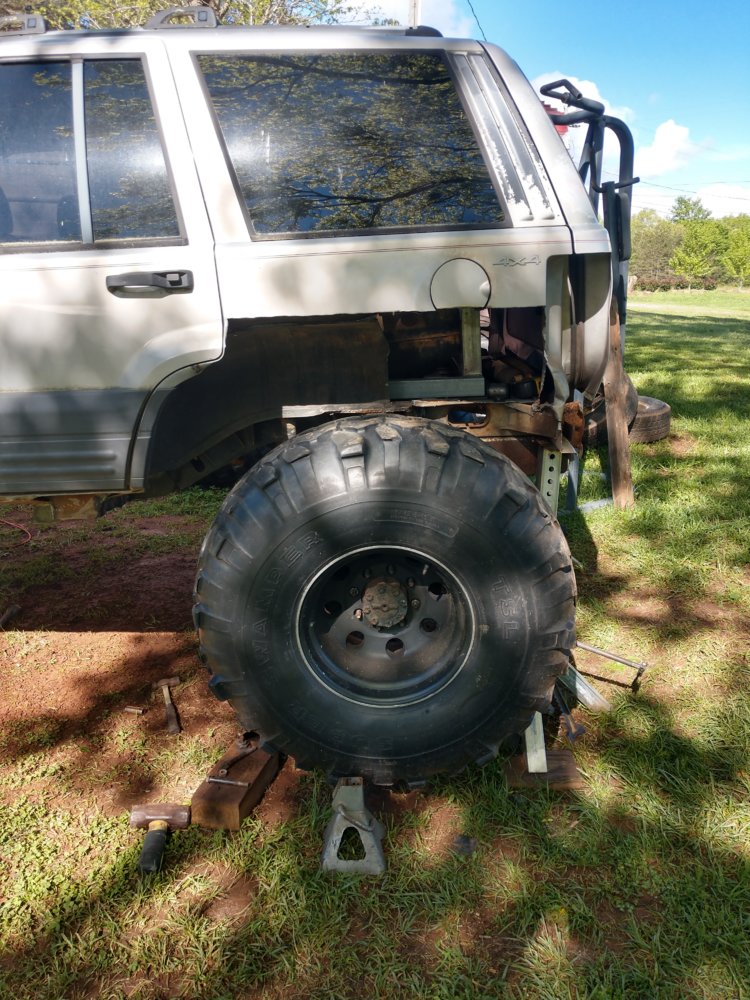

    its coming along slowly lol. I finally got rear axle under it to mock up wow, LOTS AND LOTS of cutting with plasma cutter to get 40s to fit on 3" lift. I didn't realize how much higher my other xj buggy sat but anyhow, this 3" lift on 40s/tons is little "lower" than expected haha. it's gonna have a mean looking stance that's for sure and very stable with this height. will keep updated once I make some real progress. Boat sides are on (cutting out rockers was a pita).

    Van-go likes this.
  12. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC

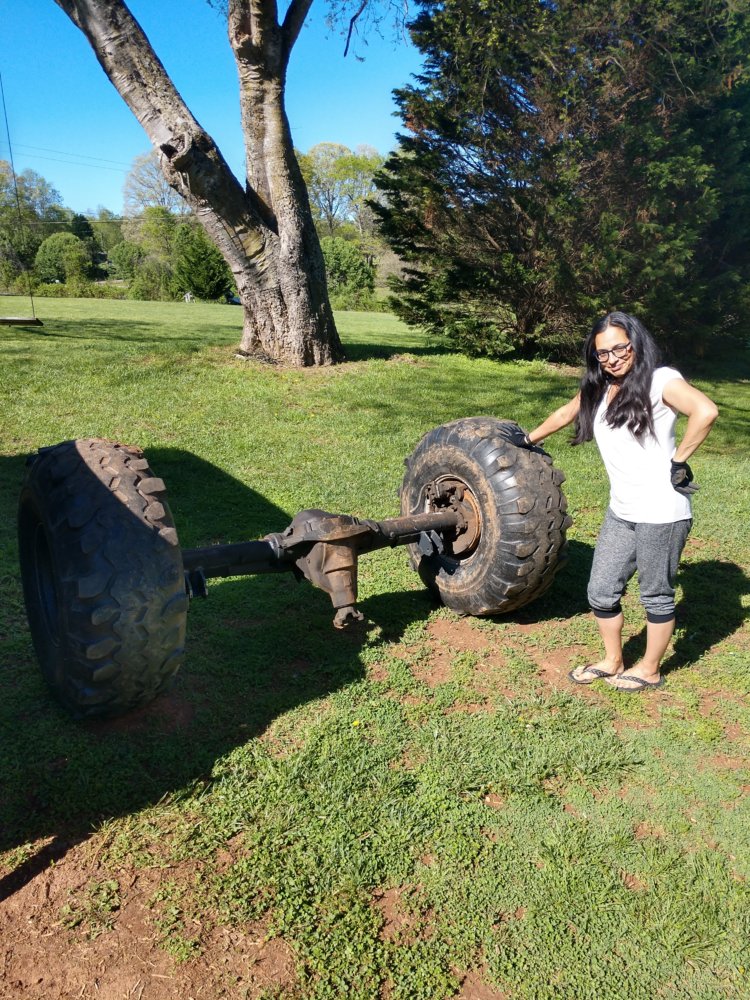

    Wifey got a workout helping moving the rear axle in. Fun part was me dragging it under the jeep on grass:mad::confused::( IMG_20190415_163247756_HDR.jpg

    drkelly, Jody Treadway and XJsavage like this.
  13. BigClay

    BigClay Well-Known Member

    Joined:
    Sep 24, 2008
    Location:
    Winston-Salem
    40s under a full body ZJ is going to take MASSIVE amounts of trimming at 3 inches of lift. Most off the shelf lifts for ZJs claim you need 7" springs to run 35s :eek:

    Chris_Keziah likes this.
  14. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    Yes I know lol. But with plasma cutter, saw saw and some Fuller ingenuity anything is possible haha

    BigClay, NickMaul and drkelly like this.
  15. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    Almost all the weight on rear..so 3" lift will work woohoo

    XJsavage, Van-go, ChrisAyers and 2 others like this.
  16. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Two of my buddies had ZJ’s on 42’s. This should be fun!

    Chris_Keziah and marty79 like this.
  17. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    It's different, good in some ways bad in others. I'm liking it so far for the most part lol. More tedious cutting than the XJ. I've got rear axle almost even with the rear so I like that much better. With low to the ground and 117" wheelbase should be way more stable than the other buggy. Longer wheelbase will also favor me when I get a doubler down the road hehe. Well that's it for now

  18. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    Gotta admit that Sterling rear is WAY more forgiving on ground clearance for the tire size vs the D70 I had

  19. XJsavage

    XJsavage Warlock of Zante plantation

    Joined:
    Aug 15, 2009
    Location:
    Sc
    Ironically enough, the Sterling centersection and axle tubes as far as size are comparable to a Dana 80. :lol:
    I do love mine though. The shafts stock for stock are larger than that of a 14 bolt. They also have a very convenient O-ring machined into the shaft flange which mean no more RTV. The factory discs just flat work.
    Just whatever you do make sure you build a solid truss or at the very least welded tubes.

    Hurry up get this done.
    :beer:

    NickMaul and marty79 like this.
  20. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    Nothing like the feeling when rear sitting on it's own weight whew...

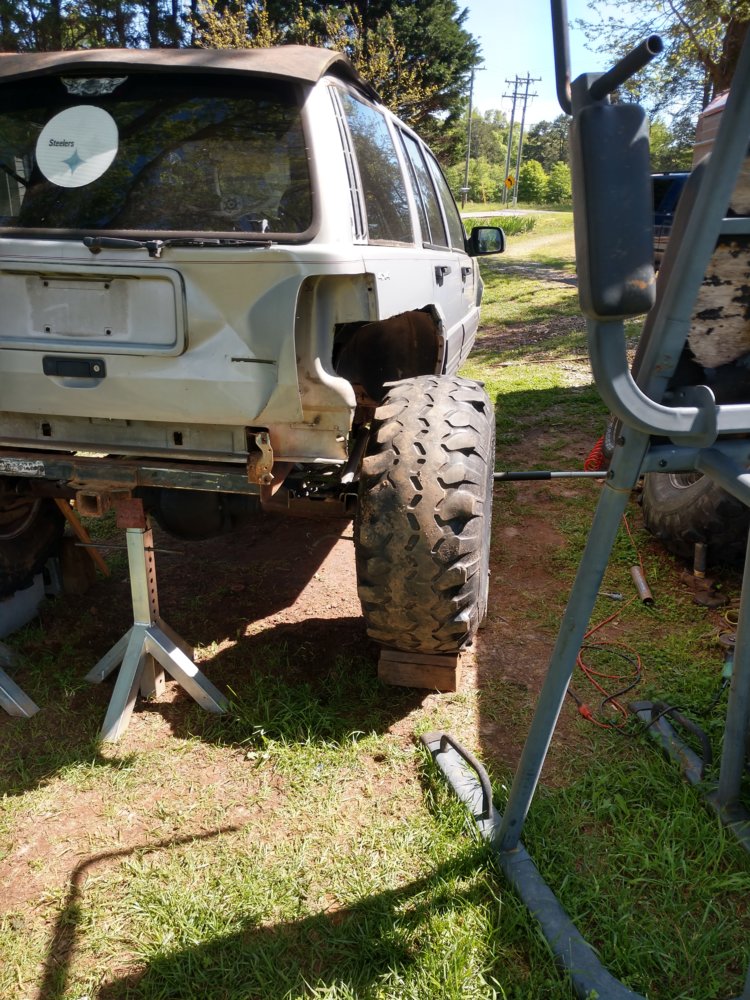

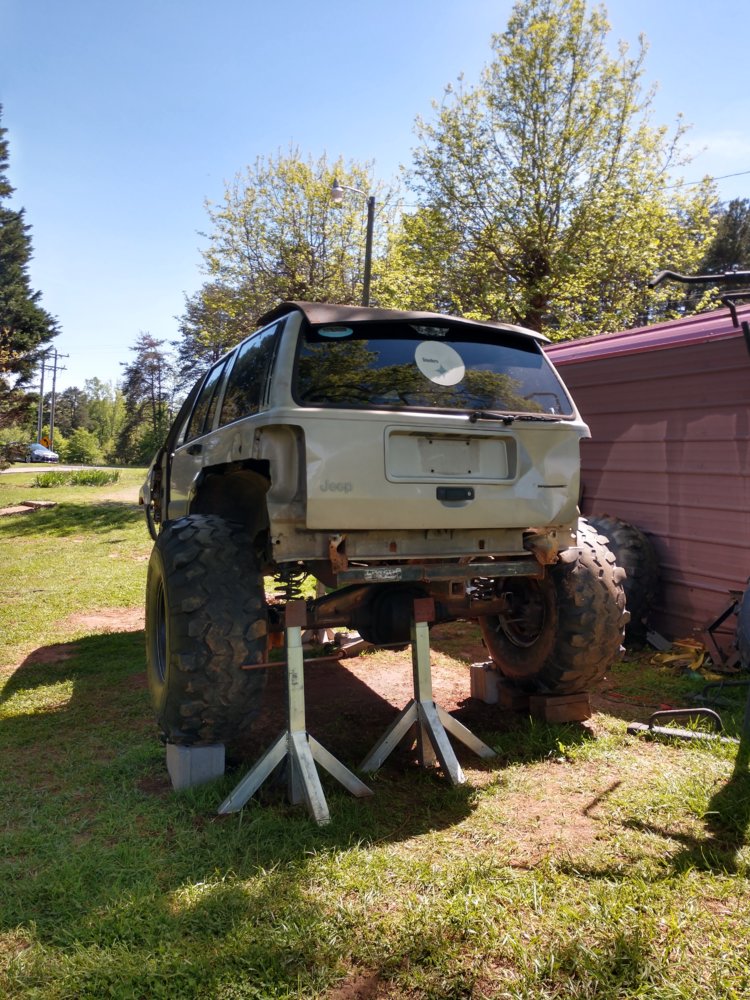

    Ended up with 37.5 lowers, 32" uppers on 3" lift. I cycled the rear and wow, pretty awesome so far. Gonna need some long travel shocks for sure
    IMG_20190423_151944091_HDR.jpg IMG_20190423_151931562_HDR.jpg

    drkelly likes this.
  21. ghost

    ghost Well-Known Member

    Joined:
    May 25, 2006
    Location:
    Hartsville/Camden,SC
    Wifey is cute why she with you??? ;) This one is looking better than tony the tiger you built last time...... :D

  22. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    That's because I haven't got to the cage yet :lol::lol::lol::lol::lol::D:driver:

  23. Jody Treadway

    Jody Treadway Croc wearing fool Moderator

    Joined:
    Mar 20, 2005
    Location:
    Hendersonville, NC
    Not to bust your bubble @ghost, but you're one ugly SOB

  24. skyhighZJ

    skyhighZJ Thanks for your taxes

    Joined:
    May 31, 2012
    Location:
    Aberdeen, NC.
    I’m glad someone broached that subject! On a serious note @marty79 it looks good but as mentioned. Figure out a simple up and over truss or weld the tubes. Keep the updates coming!

    Jody Treadway likes this.
  25. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    Huh..the rear has a truss been done for while. It's on pg 1 I think. Tubes are welded too.

    skyhighZJ and Van-go like this.
