This is my first real build thread on nc 4x4 forum, first time really modding my 05 tj... im doing a 1 ton swap dana 60 kingpin 14bolt but no stretch no body mods that still to come..

What it has now dana 30 dana 44 4:88 open 4" rock krawler longarm, tom wood's sye and ds anti rock, bilistein 5150 wore out 36" iroks...

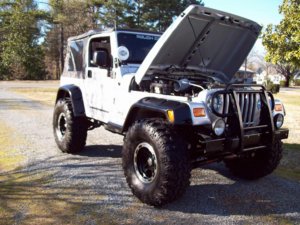

What it is getting dana 60 kinpin 5:38,detriot,tnt truss with all new brackets,great lake diff cover. 14 bolt 5:38,arb,rk truss+all new brackets,disk brakes,great lake diff cover and pinion guard. gen right alien tank, ballistic high steering with 7/8 heim sterring kit.. This is what it looked like after first set of upgrades standered every day modified tj


Attachments

  • 007.jpg
    204.4 KB · Views: 1,681
  • IMAG0387.jpg
    150.4 KB · Views: 1,484
  • IMAG0500.jpg
    171.7 KB · Views: 2,801
a4.. 5150


Attachments

  • IMAG0366.jpg
    68.9 KB · Views: 1,251
  • IMAG0379.jpg
    85.9 KB · Views: 1,237
60 getting ready for gears,lockers.14 bolt is getting ready for a shave waiting parts....


Attachments

  • IMAG0495.jpg
    93.4 KB · Views: 1,535
  • IMAG0491.jpg
    135.6 KB · Views: 1,299
S pod and relay female's showed up.. Waiting for 60 to get back from my gear man. Going out to the shop to machine 60 hubs to except 9/16 studs to mach the 14 bolt post up pick's when im done..


Attachments

  • IMAG0511.jpg
    101.2 KB · Views: 1,191
just got back from my friend's machine shop (thank's joey). changed dana 60 lug's from 1/2 to 9/16 wapita...


Attachments

  • IMAG0527.jpg
    111.3 KB · Views: 1,125
  • IMAG0525.jpg
    75.7 KB · Views: 1,115
  • IMAG0518.jpg
    87.8 KB · Views: 1,147
37" pitbull's rocker radial's. When they wear out I'll be going to 41.5" rocker's hyline's 5" stretch in the rear 3" in the front.

Lookin good man!

Got the 60 back from MR Bost. Need to get it back together and get it painted. Also got me laser V rocker switches.. genright tank suppost to be here tomorrow.. Hopefully my arb well get here so the 14 bolt can get done.. :beer:


Attachments

  • IMAG0529.jpg
    82 KB · Views: 1,034
  • IMAG0528.jpg
    85.5 KB · Views: 1,025

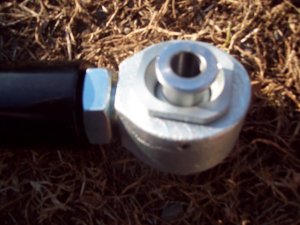

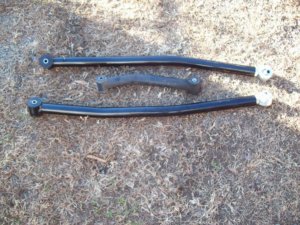

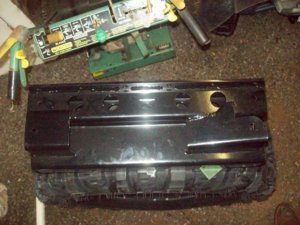

Some people have asked about the rock krawler suspention


Attachments

  • 100_1910.jpg
    102 KB · Views: 1,008
  • 100_1902.jpg
    161.6 KB · Views: 1,009
  • 100_1909.jpg
    272.1 KB · Views: 1,063
genright tank showed up with some coil buckets and lower link mount's


Attachments

  • IMAG0531.jpg
    116.9 KB · Views: 983
I hated loosing 5 gallon's but, i didn't won't to spend a extra $1000 when I stretch because I didn't have enough room ether.

just got back from my friend's machine shop (thank's joey). changed dana 60 lug's from 1/2 to 9/16 wapita...

When doing this did you ream out the holes bigger or just press out the 1/2's and then press in the 9/16?

I've read where some people say to do that, no need to ream out the hole bigger.

I had to drill thim to 39/64 which gave me 7000th press. I read were they will press in with out drilling to. only thing I can think off is the chevy hub has a bigger stud hole. The 9/16 studs I'm using the part # show's it's a chevy anyways.

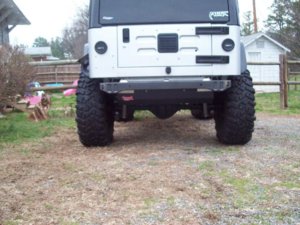

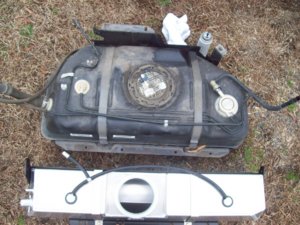

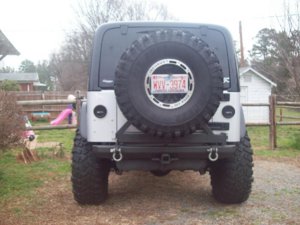

just finished up installing my genright tank. i ganned 9 1/2" wich should be plenty even when i stretch it later on.


Attachments

  • 100_1927.jpg
    125.1 KB · Views: 952
  • 100_1936.jpg
    156.9 KB · Views: 953
  • 100_1930.jpg
    190.1 KB · Views: 901
finally got rid of that pos flowmaster and got me a thrush no more droning.:bounce2:


Attachments

  • 100_1940.jpg
    106.1 KB · Views: 817
