Purple YJ Build

Discussion in 'Build Threads' started by Van-go, Jan 15, 2018.

  1. Steele32

    Steele32 New Member

    Joined:
    Oct 30, 2018
    Location:
    Manassas City, Virginia
    Nice. Can't wait to see how it turns out.

  2. Loganwayne

    Loganwayne #BTL

    Joined:
    Feb 15, 2013
    Location:
    Clyde, North Carolina
    I’d start with the engine transmission, transfer case cradle like most buggies start from.


    Sent from my iPhone using Tapatalk

  3. paradisePWoffrd

    paradisePWoffrd Recovering Project Junkie

    Joined:
    Nov 5, 2005
    Location:
    Newton, NC
    id also try to keep the frame rails as parallel as you can. Will make building mounts and measuring easier.

    I would also build from the suspension out. Set the axles where you want them to be at full bump with the wheelbase you want. Determine what your suspension is going to be and where the frame side control arm mounts need to be to hit that. Then figure out where/how to fit the drivetrain in with all that. Connect the dots with tube.

    Jody Treadway likes this.
  4. drkelly

    drkelly Dipstick who put two vehicles on jack stands

    Joined:
    Mar 21, 2005
    Location:
    Oak Ridge/Stokesdale, NC
    How come you have the body mounts on those big body lifts pucks? If you want to keep the top of the cage as low as possible, then it seems like you need the frame up tight against the tub. Disclaimer: I've never tackled a project as big as you are doing.

  5. WARRIORWELDING

    WARRIORWELDING Owner opperator Of WarriorWelding LLC.

    Joined:
    Jan 6, 2008
    Location:
    Chillin, Hwy 64 Mocksville NC
    for a no nonsense no figure approach.......Moto built four link cradle kit, on the stock rails.

    other then that a GOAT built sub frame module.

    Or like me, cause I like the learning curve...build from scratch. Rails, engine, trans, transfer. One module. Build from platform. If ever I did this the package would be high and tight to a tub reward as possible. I don't like foot well crowding so this would be my start point and limitation. The only next one is your imagination and desire to keep stock lines or tub components.

  6. Chris_Keziah

    Chris_Keziah Joe Dirt @ Rev Limit Fab

    Joined:
    Dec 1, 2010
    Location:
    Winston-Salem
    I support all 3 of these options. The cheapest/easiest is the Motobilt sub-frame like @BRUISER is using. I've been pondering the Motobilt sub-frame on my Jeep but thinking I'll make my own that will keep the belly close to the bottom of the frame rails while still keeping it flat-ish.

    This is a tube frame build I thought was pretty neat on Pirate: TJ Tube Chassis (Lots of Photos) - Pirate4x4.Com : 4x4 and Off-Road Forum

  7. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Well, I am using 3 inch tall tubing and a stock YJ frame is 4in tall. So a 1 inch taller bushing would bring me close to stock dimensions from bottom of frame to bottom of tub.
    I need about 12 inches from belly pan up to tuck my drivetrain in a flat belly.
    An LS also is a little taller than I’d like, so that puts my intake barely below my hood up front.
    Otherwise I would just cut my floor out and tuck the drivetrain up higher.

    Hope that makes sense.

    Thanks for all the help guys.

  8. WARRIORWELDING

    WARRIORWELDING Owner opperator Of WarriorWelding LLC.

    Joined:
    Jan 6, 2008
    Location:
    Chillin, Hwy 64 Mocksville NC
    this would give you a more compact build....top off cage to skid. Would also require more finagling. I am a big fan of compromising the two. Totally raising the drive train up into the rails will lend itself to building around the shell.....more like Matt did. Make mounts for the drive train and allow for height placement on it and those mounts til your certain.
    Build with flexibility in mind, brackets can be trimmed quicker then tubs rebuilt....that my only real advice.

    Van-go and Chris_Keziah like this.
  9. XJsavage

    XJsavage Warlock of Zante plantation

    Joined:
    Aug 15, 2009
    Location:
    Sc
    The way I would probably go about it is to build the lowest section first (belly). Integrate the lower link mounts into it, mount tub and set belly height. Build from there out and up.

    Van-go likes this.
  10. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Kinda frustrated.
    Been wheeling and dealing, got some more junk. Traded for more junk. Sold that junk. Got a free trailer out of the deal.
    Still haven’t spent $ from a paycheck on this “build” so that’s a good thing I guess.

    Anyways,
    Frustrated with the lead time on something I ordered so I could finally start building this thing.

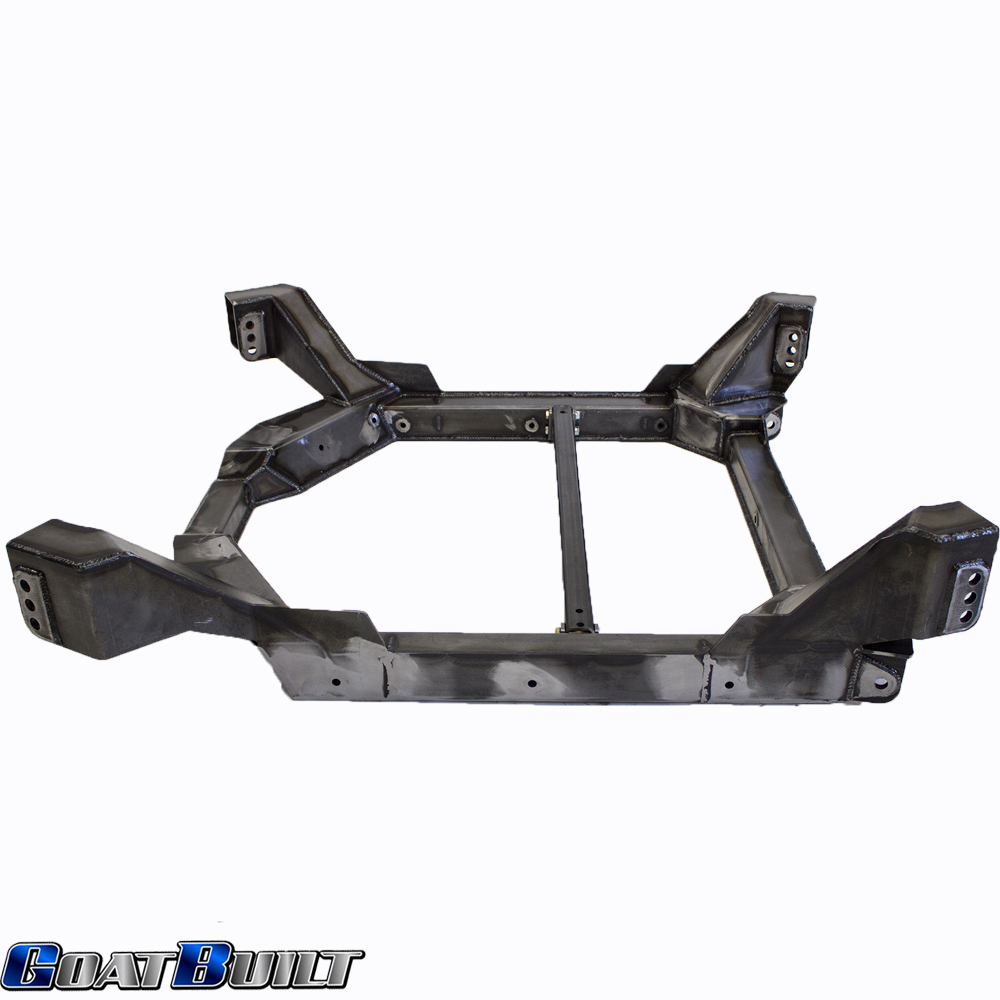

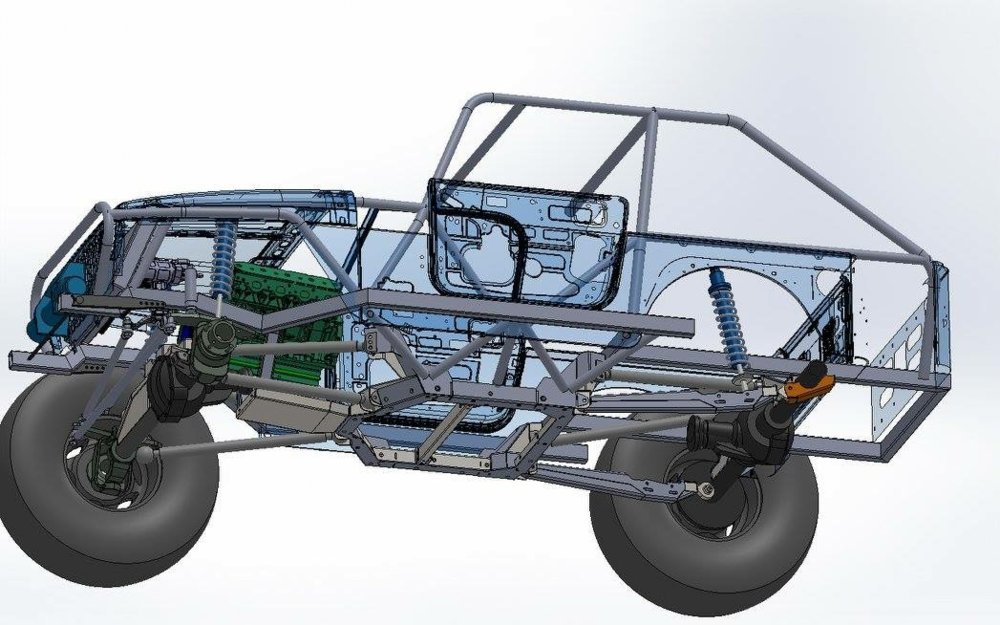

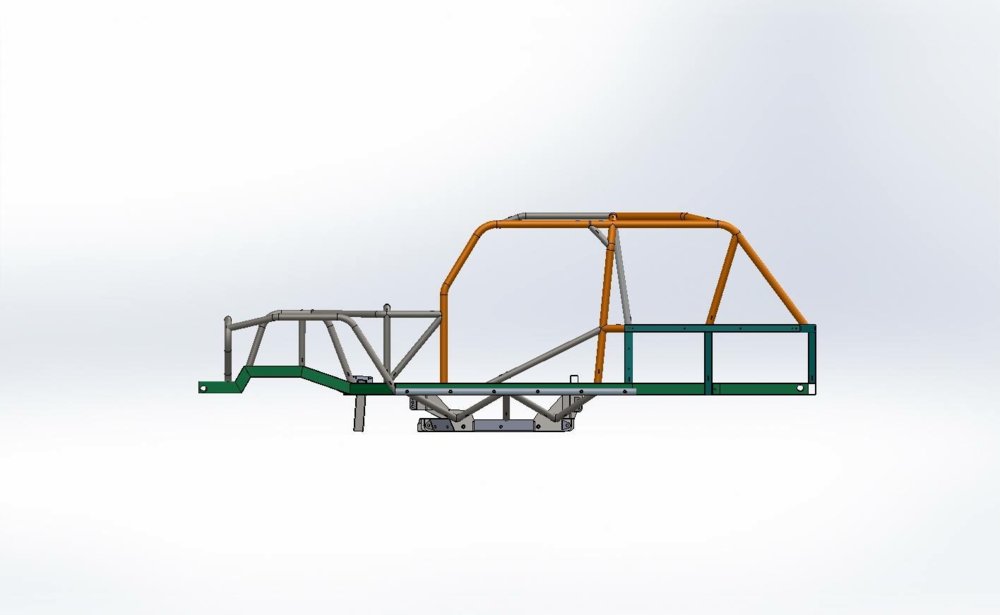

    Ordered a GOAT built ibex subframe back on November 8th... still hasn’t been shipped. I’ve followed up a few times and they always respond with some answer, but I feel like it shouldn’t take two months to get it to me. I was told two weeks back on November 16th..

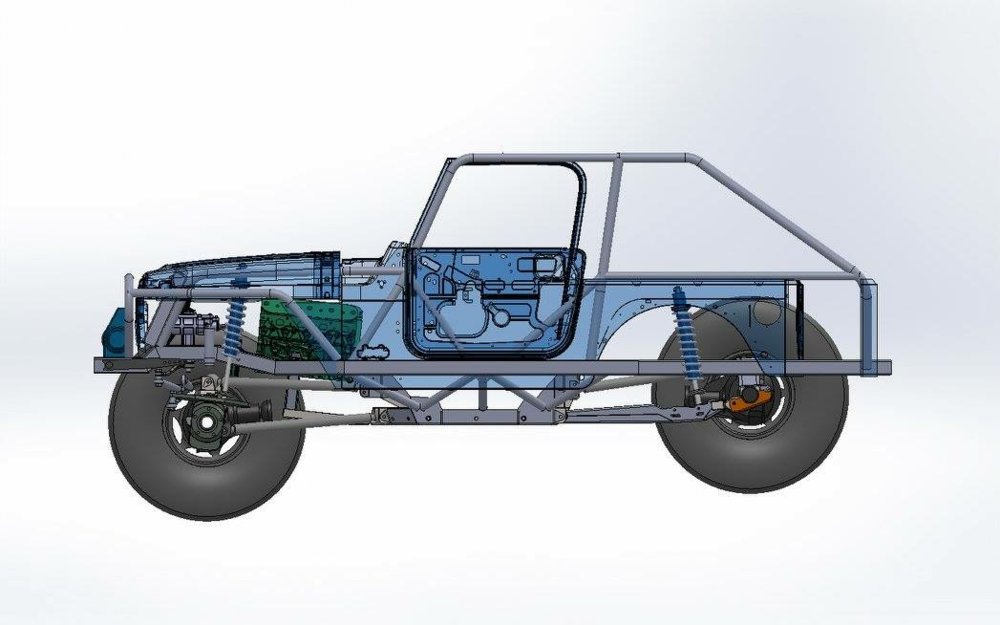

    4A448102-B697-4497-9CB5-1F96F0837185.jpeg B5797F7E-6915-4FBC-A1FC-DDDA9CACC7FD.jpeg 579E4B11-647B-481F-B8F4-AA418E4A13F5.jpeg CDD3AD2A-F531-45D1-B28E-5C7073664BE5.jpeg
    Anyways. Should be a great base to build off of. And it's given me time to buy and sell enough stuff to have some funds to buy some parts.

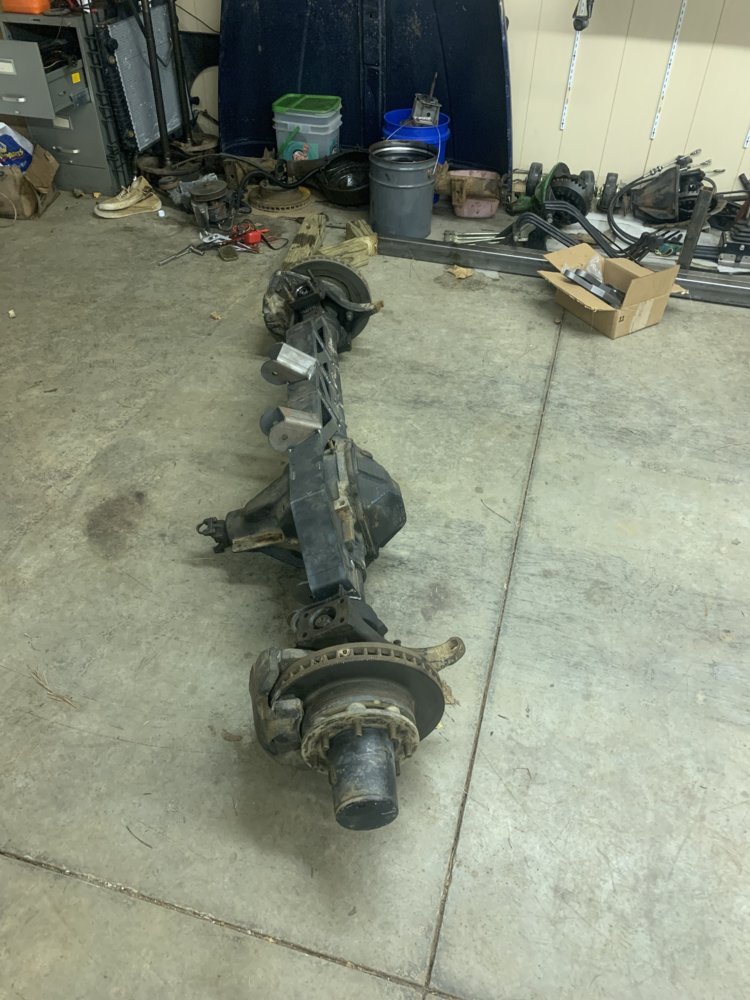

    Got some free link mounts off an axle I sold.


    doc and drkelly like this.
  11. Creekin

    Creekin Well-Known Member

    Joined:
    Jun 26, 2018
    Location:
    Hickory
    Like the trailer...
    Are you keeping it, or looking to sell / trade?

  12. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

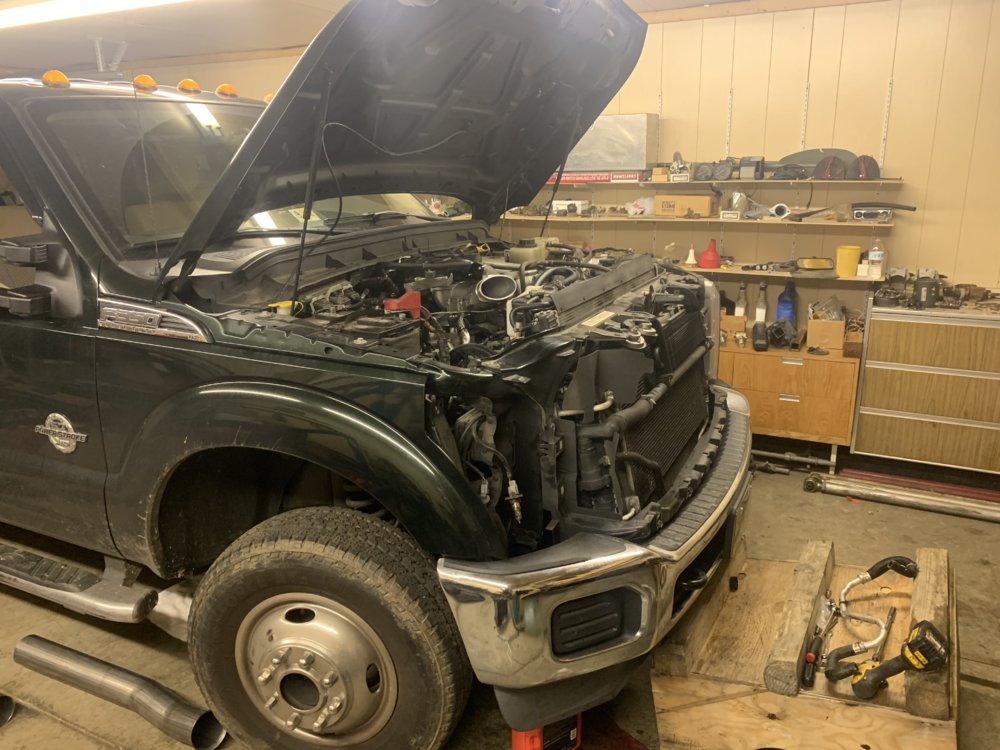

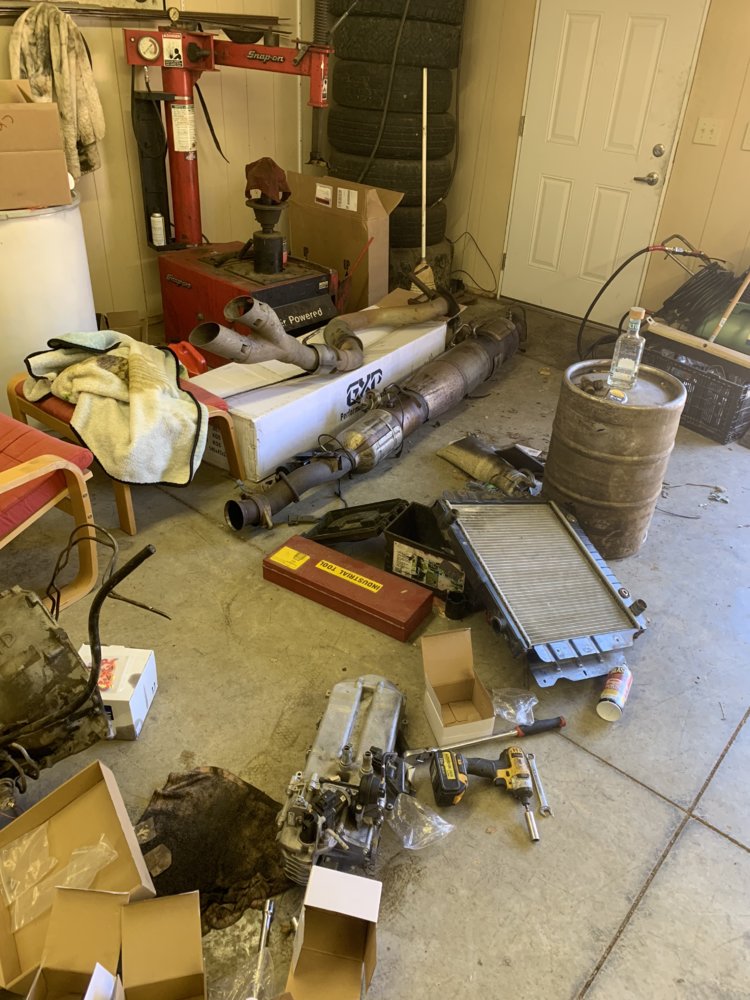

    Also deleted the 6.7
    That was a fun night...
    F966049D-4372-4CB5-ACE5-3C6F5770043D.jpeg DE4E1AFD-D0C2-40CE-8892-7F9E91756B42.jpeg

    Last edited: Jan 3, 2019
  13. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Anything is for sale for the right price.

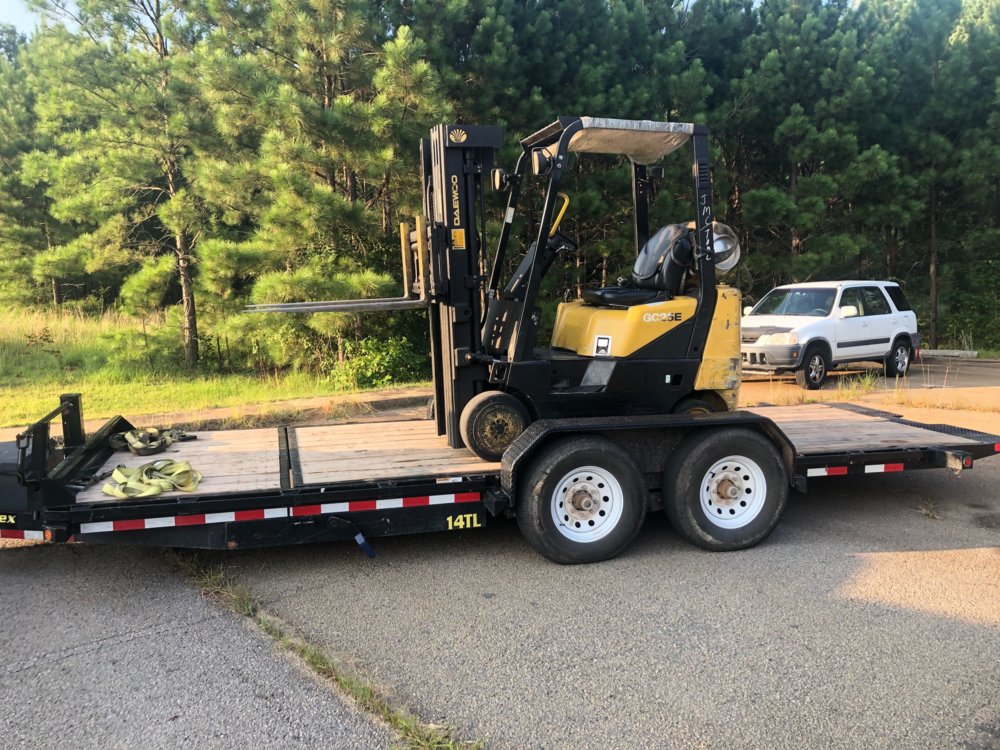

    I was planning to cut it and lengthen it to 34-36 ft then mount a camper to it.
    But it’s a Big Tex. 20ft with 16 ft tilt 7k axles removable fenders.
    I bought it from a friend who said he bought it at auction without a title. So no title.

  14. Creekin

    Creekin Well-Known Member

    Joined:
    Jun 26, 2018
    Location:
    Hickory
    Getting rid of that junk on the 6.7 must have fun.
    Never liked the emissions BS on diesel trucks.
    Guess that is why cannot get rid of the two 7.3 Liter Fords.

  15. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    All I had before this was 7.3’s. It’s weird for me to be tearing into a newer vehicle but it’s definitely worth it.

  16. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

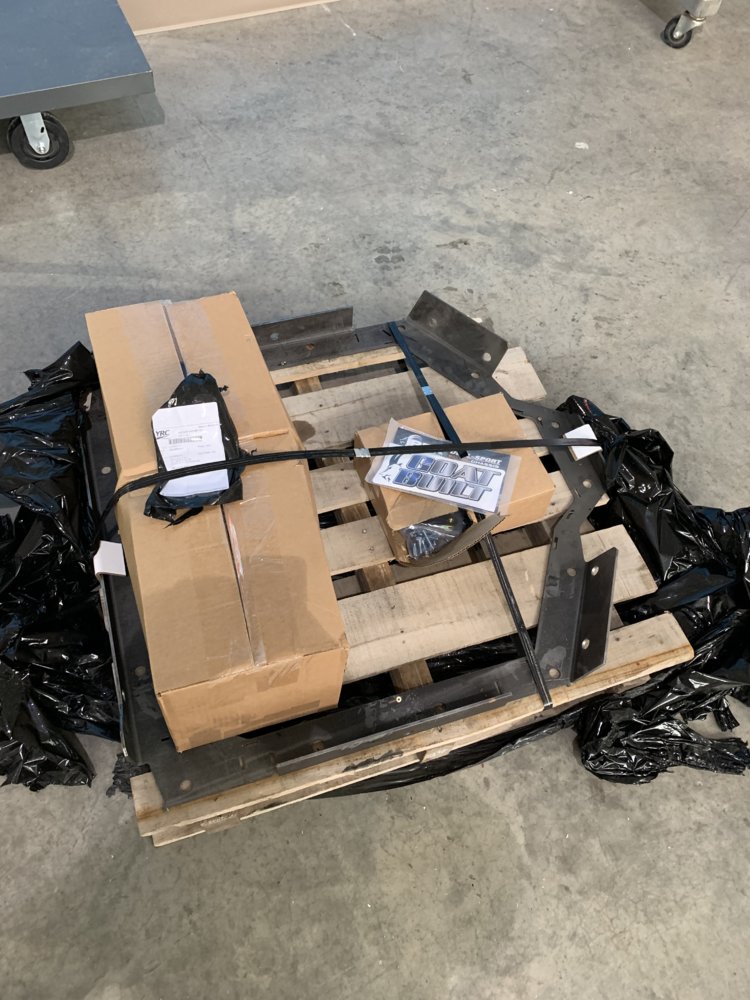

    Finally came in... 3AABF695-0BED-4088-A8CD-387435EDFCFC.jpeg

  17. Loganwayne

    Loganwayne #BTL

    Joined:
    Feb 15, 2013
    Location:
    Clyde, North Carolina
    Looks all rusty send it back.

    Kidding


    Sent from my iPhone using Tapatalk

    justjeepin86 and Van-go like this.
  18. CasterTroy

    CasterTroy Motarded

    Joined:
    Mar 21, 2005
    Location:
    Wallburg
    Time to come hang out!!

    Potts: July 20
    Harlan: August 10

    77GreenMachine likes this.
  19. drkelly

    drkelly Dipstick who put two vehicles on jack stands

    Joined:
    Mar 21, 2005
    Location:
    Oak Ridge/Stokesdale, NC
    Where did you get those slider boxes?

  20. Chris_Keziah

    Chris_Keziah Joe Dirt @ Rev Limit Fab

    Joined:
    Dec 1, 2010
    Location:
    Winston-Salem
    Those look like Liquid Iron Industries.

  21. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    What Chris said. Their site was down last time I checked so I just called them.

  22. justjeepin86

    justjeepin86 Well-Known Member

    Joined:
    Jul 9, 2005
    Location:
    Winston-Salem, NC
    Did you finish the bath for the wife yet? Thinking with all this going on, you better have! lol

  23. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Is anything ever truly finished? Lol

    doc likes this.
  24. doc

    doc Well-Known Member

    Joined:
    Mar 20, 2005
    Location:
    Southmont
    ...you are wise beyond your years.

  25. adamk

    adamk Well-Known Member

    Joined:
    Nov 20, 2010
    Location:
    Burlington
    Man! That purple YJ really looks good in silver and with a Toyota emblem!
